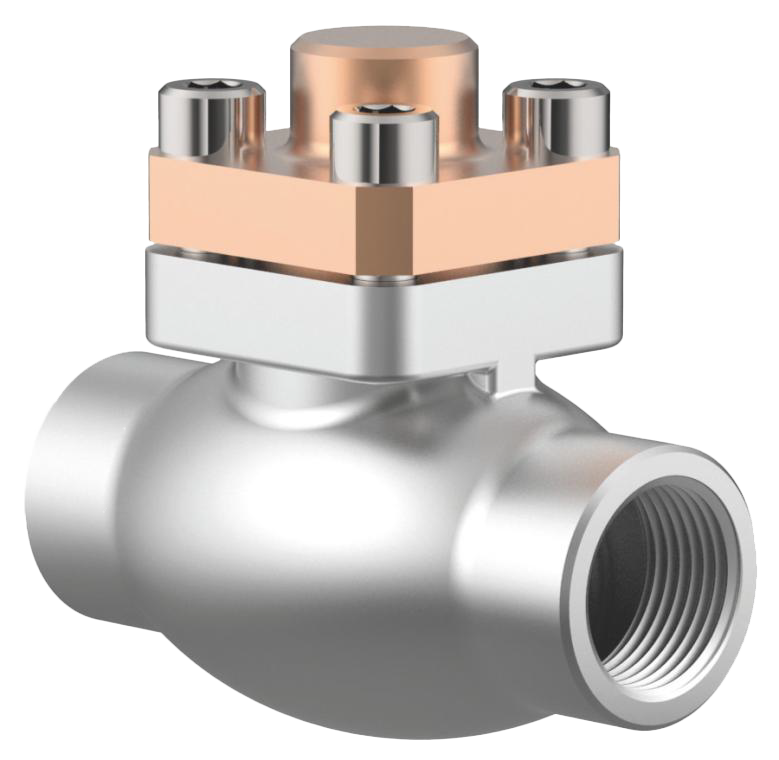

CRYOGENIC CHECK VALVE TYPE 05415 THREADED
TECHNICAL DESCRIPTION
Cryogenic check valves, PN50
· stainless steel body and bronze cover
· with spring, minimum opening pressure 0.1 Bar
· cleaned and degreased for oxygen operation
thread (G) according to ISO 228/1
· Art. No. 05415.X.0001
NPT thread according to ANSI B 1.20.1
· Art. No. 05415.X.0006
OPTIONS
· thread (R) acc. acc. ISO 7-Rc
WORKING FLUID / MEDIUM
Approved for gases, vapors and liquefied cryogenic gases and LNG.
Dimensions: G1/4″ – 2″
Additional information

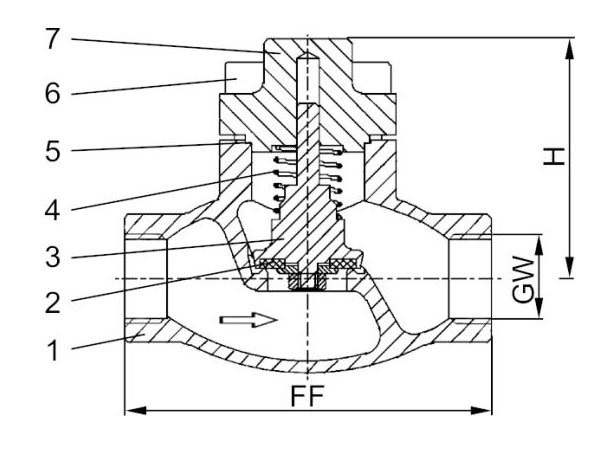

Materials
| No. | Materials | DIN EN | ASTM |
|---|---|---|---|
| 1 | Body | 1.4308 | A 351 CF8 |
| 2 | Saddle | Teflon PTFE / graphite filler (25%) | |
| 3 | Valve | brass CW614N | B283 UNS C38500 |
| 4 | Spring | CW452K | B159 UNS C51900 |
| 5 | Lid gasket | Teflon PTFE | |
| 6 | Bolts | 1.4301/A2 | A 194 B8 |
| 7 | Lid | CC493K | B505 UNS C93200 |
Features
| SPECIFICATION" | |
|---|---|
| Type 05415 | cryogenic check valve PN 50 |
| Connection ends | threaded |
| Construction length | factory standard |
| Attaching the lid | flanged |
| Execution | straight |
| Joining | threaded |
| Drive | independently |
| Working temp. [°C] | -196 °C / -321 °F |
| up to +120 °C / +248 °F | |
Dimensions
| DN | Thread Size (GW) | Size Code (.X.) | Construction Length (FF) | Height (H) | Weight (approx. kg) | Kvs Value (m³/h) | Cv Value (gal/min) |
|---|---|---|---|---|---|---|---|
| 10 | 1/4 | 0200 | 70 | 71 | 0.7 | 1.6 | 1.9 |
| 10 | 3/8 | 0300 | 70 | 71 | 0.7 | 2.2 | 2.6 |
| 15 | 1/2 | 0400 | 85 | 71 | 1.0 | 4.3 | 5.0 |
| 20 | 3/4 | 0600 | 100 | 72 | 1.3 | 6.7 | 7.8 |
| 25 | 1 | 1000 | 115 | 75 | 1.6 | 11.5 | 13.4 |
| 32 | 1-1/4 | 1200 | 130 | 95 | 3.9 | 20.6 | 23.9 |
| 40 | 1-1/2 | 1400 | 130 | 95 | 3.9 | 22.6 | 26.3 |
| 50 | 2 | 2000 | 155 | 95 | 5.7 | 37.1 | 43.2 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

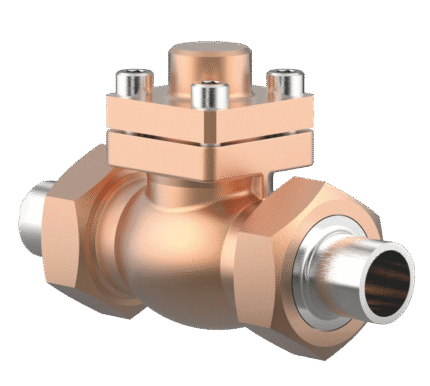

CRYOGENIC CHECK VALVE TYPE 05411 ON THE JOINT WITH STAINLESS STEEL BRADING FITTINGS
Select options
This product has multiple variants. The options may be chosen on the product page

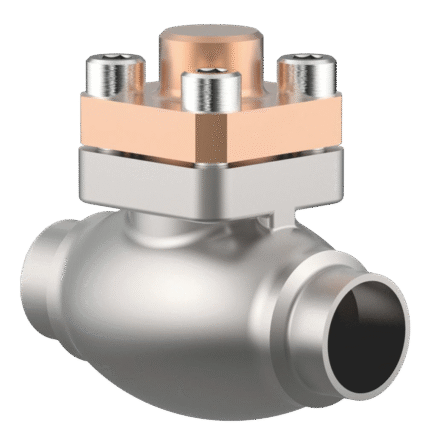

CRYOGENIC CHECK VALVE TYPE 05416 WELDED
Select options
This product has multiple variants. The options may be chosen on the product page
CRYOGENIC GATE VALVE TYPE 01301 WITH BRAZED STAINLESS STEEL ENDS
Select options
This product has multiple variants. The options may be chosen on the product page

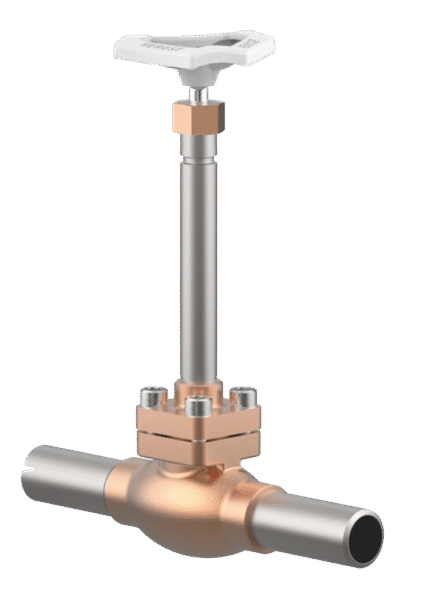

CRYOGENIC GATE VALVE TYPE 01311 WITH EXTENDED SPINDLE AND BRAZE COPPER ENDS
Select options
This product has multiple variants. The options may be chosen on the product page
CRYOGENIC GATE VALVE TYPE 01311 WITH EXTENDED SPINDLE AND THROUGHTING POLE WITH BRAZED STAINLESS STEEL ENDS
Select options
This product has multiple variants. The options may be chosen on the product page

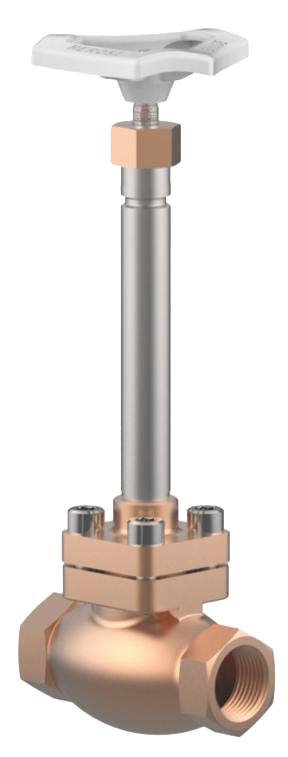

CRYOGENIC GATE VALVE TYPE 01315 WITH EXTENDED THREADED SPINDLE
Select options
This product has multiple variants. The options may be chosen on the product page

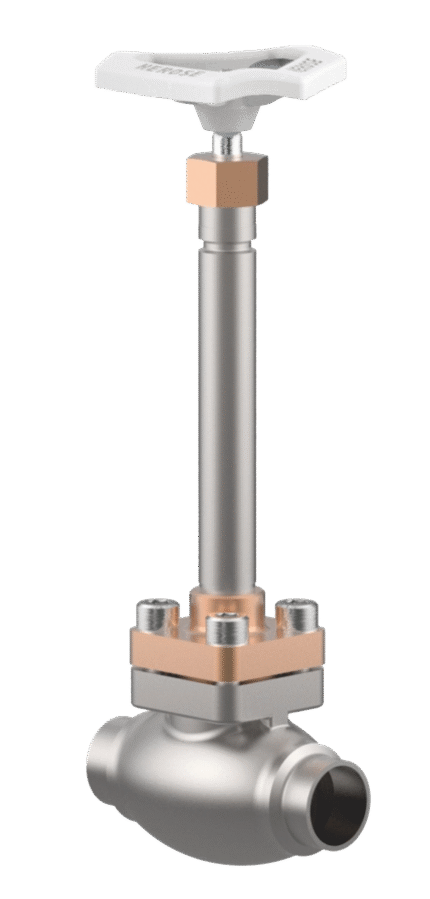

CRYOGENIC GATE VALVE TYPE 01321 WITH EXTENDED WELDED SPINDLE
