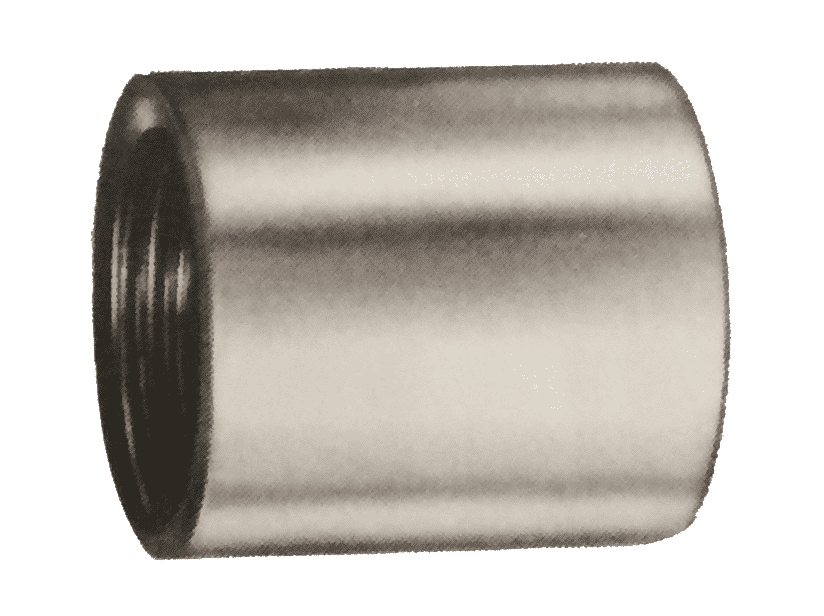

COUPLING / EN10241, TABLE 12
TECHNICAL DESCRIPTION
The coupling is a threaded connecting element that provides a straight connection between two pipe components (pipes) of the same diameter.
Dimensions: G 1/8″ – 4″
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Threaded coupling | steel P265GH; A234 WPB |
| other steels - on request | ||
| stainless steels - upon request |
Features
| SPECIFICATION | |
|---|---|
| Standard | EN10241 |
| Pressure | 25 Bar |

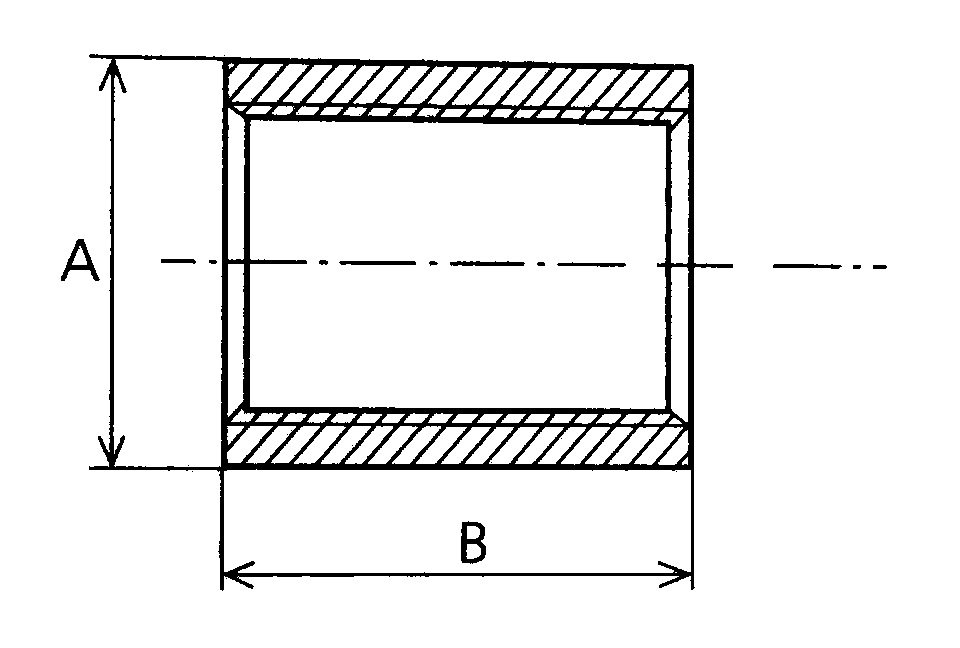

Dimensions
| DN | G | A mm | B mm |
|---|---|---|---|
| 6 | 1/8" | 15.0 | 17 |
| 8 | 1/4" | 18.5 | 25 |
| 10 | 3/8" | 21.3 | 26 |
| 15 | 1/2" | 26.6 | 34 |
| 20 | 3/4" | 31.8 | 36 |
| 25 | 1" | 39.5 | 43 |
| 32 | 1 1/4" | 48.3 | 48 |
| 40 | 1 1/2" | 54.5 | 48 |
| 50 | 2" | 66.2 | 56 |
| 65 | 2 1/2" | 82.0 | 65 |
| 80 | 3" | 95.0 | 71 |
| 100 | 4" | 121.4 | 83 |
