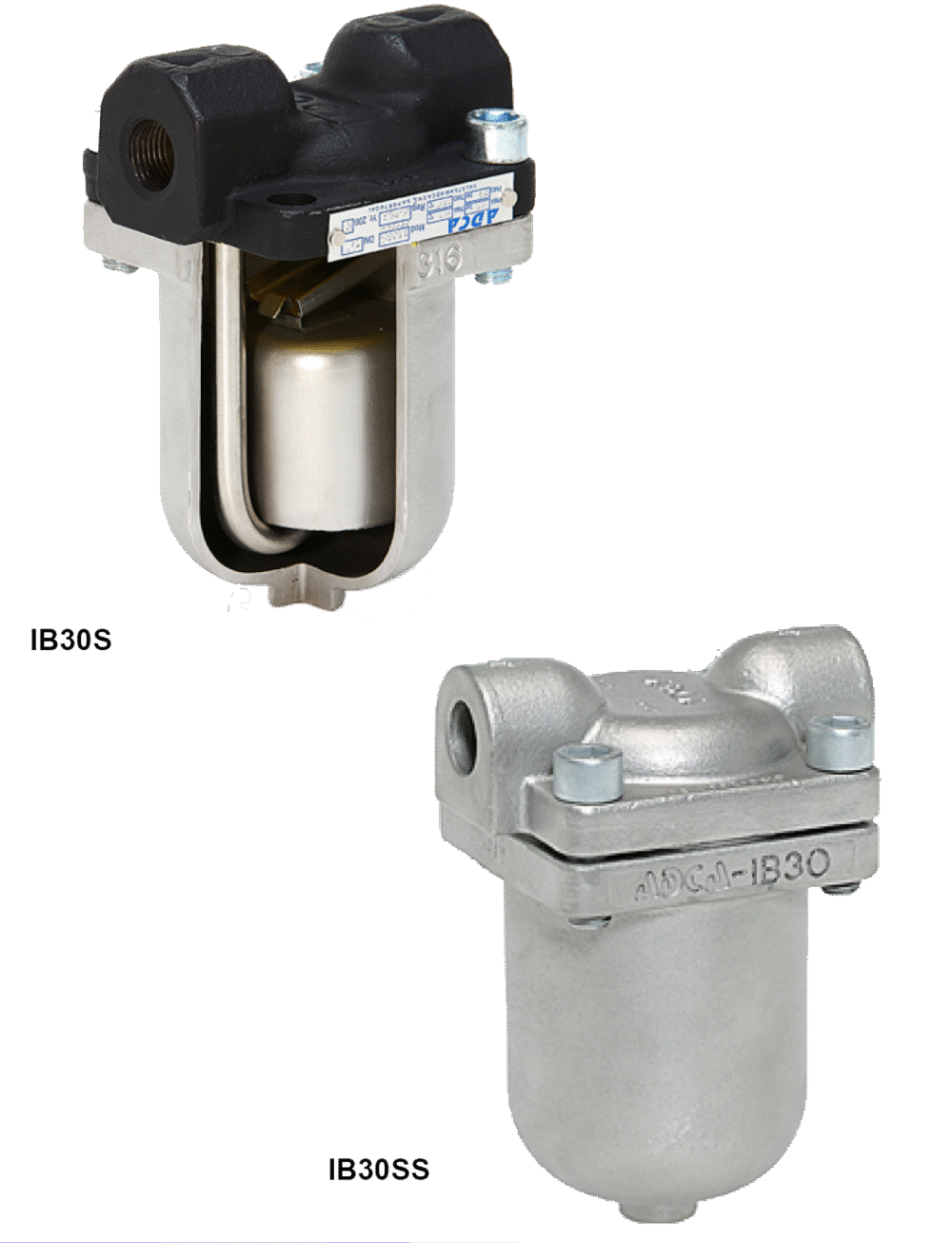

CONDENSATE TRAP WITH INVERTED PISTON ADCA IB30S / IB30SS

TECHNICAL DESCRIPTION

The IB30 series of steam traps are of inverted piston design and are recommended for use in systems where continuous efficient and trouble-free operation is required. They do not stop performing their functions, even with the passage fully open or closed, which makes them suitable for use at medium and high steam pressures. The connection is threaded or flanged.

WORKING FLUID / MEDIUM

• Saturated steam

EXECUTION

• threaded ISO7/1 Rp (BS21)
• flanged EN 1092-1 PN40 or ANSI

INSTALLATION INSTRUCTIONS

• In a horizontal position.

MAIN ADVANTAGES

• Controlled discharge.
• Drains condensate at a temperature close to that of steam.
• Not affected by hydraulic shocks and vibrations in the system.
• Easy to maintain.

Dimensions: DN 15 – 25

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. MATERIAL DETAILS IB 30 S IB 30 SS
1 Body P250GH/1.0460 CF8M / 1.4408
2 Lid CF8M / 1.4408 CF8M / 1.4408
3 Garnish graphite/graphite graphite/graphite
4 Saddle AISI 410 / 1.4006 AISI 410 / 1.4006
5 Valve AISI 410 / 1.4006 AISI 410 / 1.4006
6 Shoulder AISI 304 / 1.4301 AISI 304 / 1.4301
7 Piston AISI 304 / 1.4301 AISI 304 / 1.4301
8 Inlet pipe AISI 304 / 1.4301 AISI 304 / 1.4301
9 Bolts A2 - 70 A2 - 70
10 Anti-icing device AISI 304 / 1.4301 AISI 304 / 1.4301

Features

SPECIFICATION
Standard DIN/ANSI
Joining threaded BSP / flanged EN 1092-1 or ANSI
Lid connection threaded
Execution straight
Management automatically
Venting automatically
Installation horizontally
Maximum differential pressures:
IB30S-4 – IB30SS-4 4 bar
IB30S-8 – IB30SS-8 8 bar
IB30S-12 – IB30SS-12 12 bar

Flow rate

PASSABILITY kg/h
MODEL DN DIFFERENTIAL PRESSURE (bar)
1 2 3 4 5 6 7 8 10 11 12
IB30 - 4 15 - 25 280 390 470 530
IB30 - 8 15 - 25 190 260 320 360 400 430 460 500
IB30 - 12 15 - 25 160 220 260 290 320 360 370 400 440 480 490

Limits

MAXIMUM WORKING CONDITIONS
Maximum working pressure / Bars
IB30S flanged IB30SS flanged
PN 40 / ANSI 300 ANSI 150 PN 40 / ANSI 300 ANSI 150 T max. °C
37.1 bar 15.4 bar 40 bar 16 bar 100 °C
33.3 bar 13.8 bar 33.7 bar 13.6 bar 200 °C
25.7 bar 8.4 bar 28.5 bar 8.4 bar 350 °C
23.8 bar 6.5 bar 27.4 bar 6.5 bar 400 °C

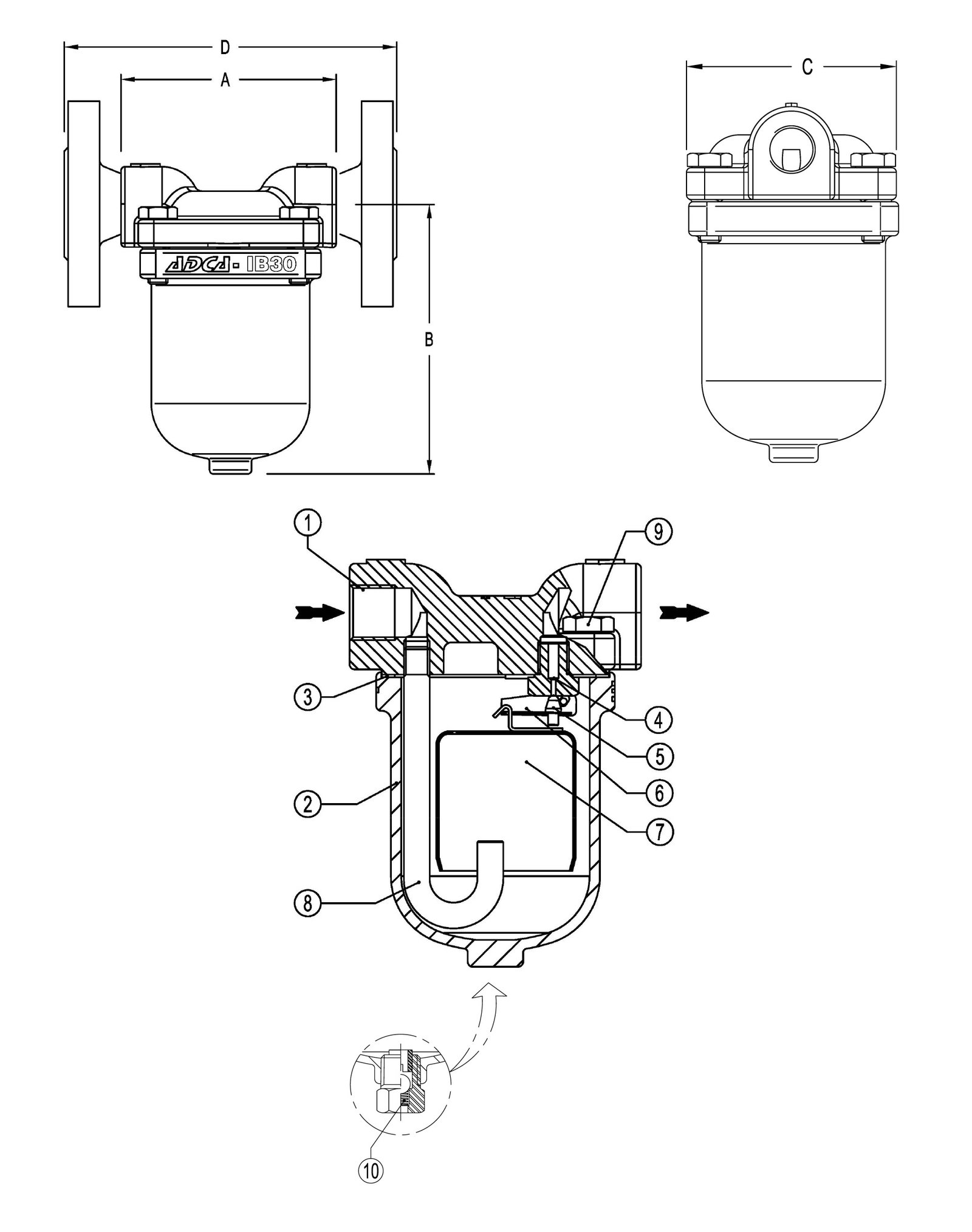

Dimensions
DIMENSIONS (mm) - IB30S
Threaded and flanged EN PN 16 / 40 ANSI 150 ANSI 300
DN A in C kg D kg D kg D kg
15 - 1/2" 110 125 92 2.3 170 3.8 170 3.3 170 4.1
20 - 3/4" 110 125 92 2.3 170 4.3 170 3.7 170 5.3
25 - 1" 110 125 92 2.3 180 4.9 180 4.5 180 6.1
DIMENSIONS (mm) - IB30SS
Threaded and flanged EN PN 16 / 40 ANSI 150 ANSI 300
DN A in C kg D kg D kg D kg
15 - 1/2" 110 125 92 2.3 170 3.8 170 3.3 170 4.1
20 - 3/4" 110 125 92 2.3 170 4.3 170 3.7 170 5.3
25 - 1" 160 125 92 2.3 180 4.9 180 4.5 180 6.5



Related products

Select options This product has multiple variants. The options may be chosen on the product page

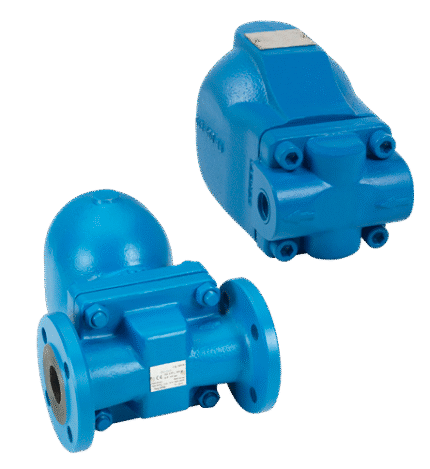

CONDENSATE SEPARATOR FLOAT THREADED / FLANGE ADCA FLT 32
