CONDENSATE TRAP WITH AIR BREATHER ADCA TSS 22 THREADED
TECHNICAL DESCRIPTION
The stainless steel thermostatic steam traps with air vent – TSS22 are specially designed for use in industrial equipment such as autoclaves, sterilizers, equipment for the food and chemical industries. Their small size makes them preferred for installation in such equipment. The connection is threaded.
WORKING FLUID / MEDIUM
• Saturated steam
EXECUTION
• thread: ISO7/1 Rp (BS21)
INSTALLATION INSTRUCTIONS
• In horizontal or vertical position.
MAIN ADVANTAGES
• Controlled discharge.
• Drains condensate at a temperature close to that of the steam.
• Thermostat for different subcoolings (5ºK to 30ºK).
• Excellent deaeration.
• Operates with moderately superheated steam.
• Simple and compact design.
Dimensions: 1/4″ – 1″
Additional information

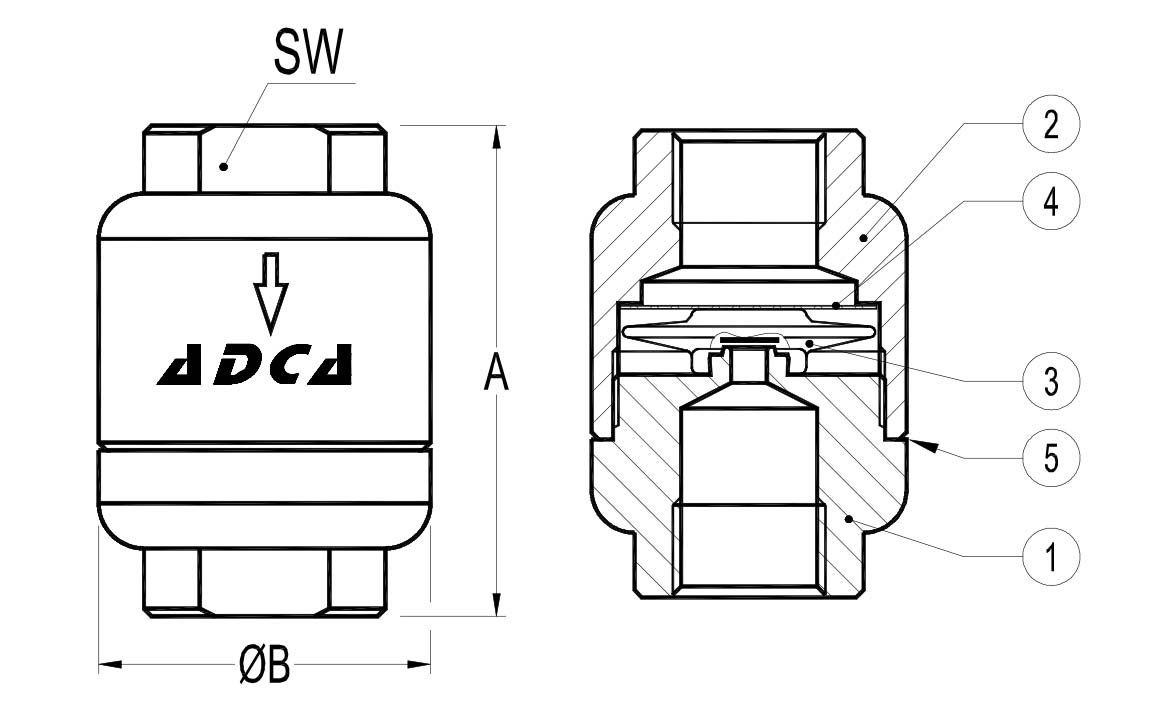

Materials
| No. | POSITION | MATERIAL |
|---|---|---|
| 1 | Body | AISI304 / 1.4301 |
| 2 | Lid | AISI304 / 1.4301 |
| 3 | Thermostatic element | stainless steel / graphite |
| 4 | Filter | AISI304 / 1.4301 |
| 5 | Instructional set | stainless steel / graphite |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Joining | threaded BSP |
| Lid connection | threaded |
| Execution | straight |
| Management | automatically |
| Venting | automatically |
| Installation | horizontal or vertical |
Flow rate
| PASSABILITY kg/h | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | DN | DIFFERENTIAL PRESSURE (bar) | ||||||||||||||
| 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | 10 | 13 | 15 | 20 | 22 | ||
| TSS 22 | 1/4" - 1" | 45 | 55 | 70 | 95 | 125 | 135 | 180 | 200 | 270 | 315 | 330 | 360 | 370 | 405 | 415 |
Limits
| MAXIMUM WORKING CONDITIONS | |
|---|---|
| Maximum working pressure / Bars | T max.°C |
| Threaded PN 40 | |
| 34.4 bar | 100 °C |
| 30.8 bar | 150 °C |
| 28 bar | 200 °C |
| 26 bar | 250 °C |
Dimensions
| DIMENSIONS (mm) | ||||
|---|---|---|---|---|
| DN | A | B | SW | kg |
| 1/4" | 65 | 44 | 27 | 0.5 |
| 3/8" | 65 | 44 | 27 | 0.5 |
| 1/2" | 65 | 44 | 27 | 0.45 |
| 3/4" | 65 | 44 | 36 | 0.47 |
| 1" | 65 | 44 | 40 | 0.4 |
