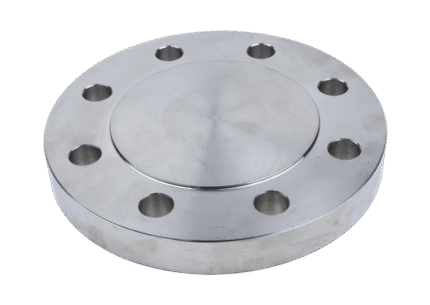

BLIND FLANGE ANSI B16.5 CLASS #150
BLIND FLANGE ANSI B16.5 CLASS #150

CHECK VALVE BRONZE FLANGED DIN PN 16

TECHNICAL DESCRIPTION

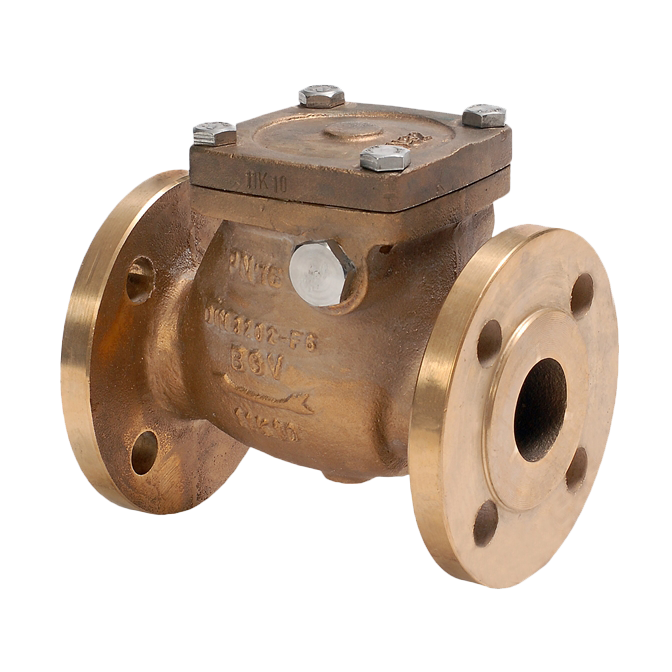

Bronze check valve, with soft sealing – NBR rubber / metal, flange connection and bolted cover.

WORKING FLUID / MEDIUM

• Thermal oil, fuels, lubricating oil and flammable hydraulic oils, petroleum, boiler feed water, condensate.
• Non-flammable hydraulic fluids, sea water.

EXECUTION

• Other materials upon request.


Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

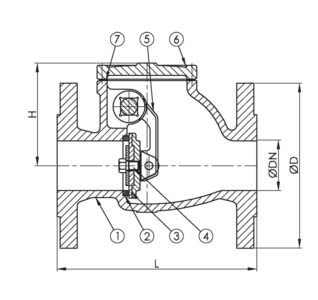

No. Part MATERIALS
1 Body bronze CC491K (RG5)
2 Saddle bronze CC491K (RG5)
3 Valve seal NBR rubber
4 Spindle bronze CC491K (RG5)
5 Valve, with swing arm bronze CC491K (RG5)
6 Lid bronze CC491K (RG5)
7 Lid seal rubber-reinforced EPDM





Features

SPECIFICATION
Joining EN 1092-3
Construction length EN 558, series 48
Lid connection bolted
Execution straight
Joining flanged
Operation self closing
max. working pressure (Bar) / °C
DN -10°C to +90°C
32 - 150 PN 16
200 - 300 PN 10



Dimensions
DN PN L D H Weight (kg)
32 PN 16 180 140 95 9
40 PN 16 180 150 95 9
50 PN 16 200 165 100 13
65 PN 16 240 185 115 16
80 PN 16 260 200 135 24
100 PN 16 300 220 145 27
125 PN 16 350 250 160 42
150 PN 16 400 285 180 58
200 PN 10 500 340 270 118
250 PN 10 600 395 320 170
300 PN 10 700 445 350 260

Related products

Select options This product has multiple variants. The options may be chosen on the product page

CHECK VALVE BRASS SPRING RETURN DIN PN 16

Select options This product has multiple variants. The options may be chosen on the product page

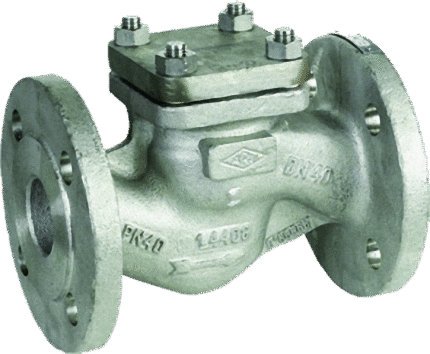

GLOBE CHECK VALVE STAINLESS STEEL SPRING RETURN DIN PN 40

Select options This product has multiple variants. The options may be chosen on the product page

GLOBE CHECK VALVE STRAIGHT FLANGED DIN PN 16

Select options This product has multiple variants. The options may be chosen on the product page

MALLEABLE IRON CHECK VALVE DIN PN 10

Select options This product has multiple variants. The options may be chosen on the product page

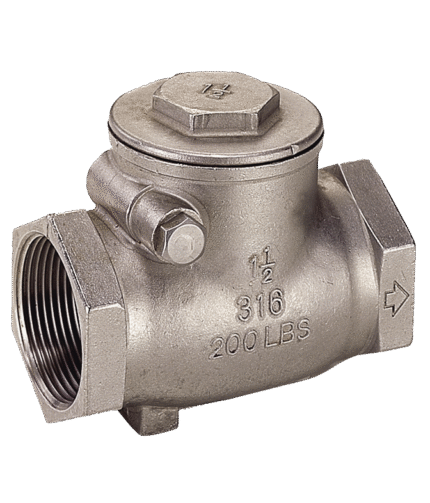

SWING CHECK STAINLESS STEEL VALVE THREADED DIN PN 40
