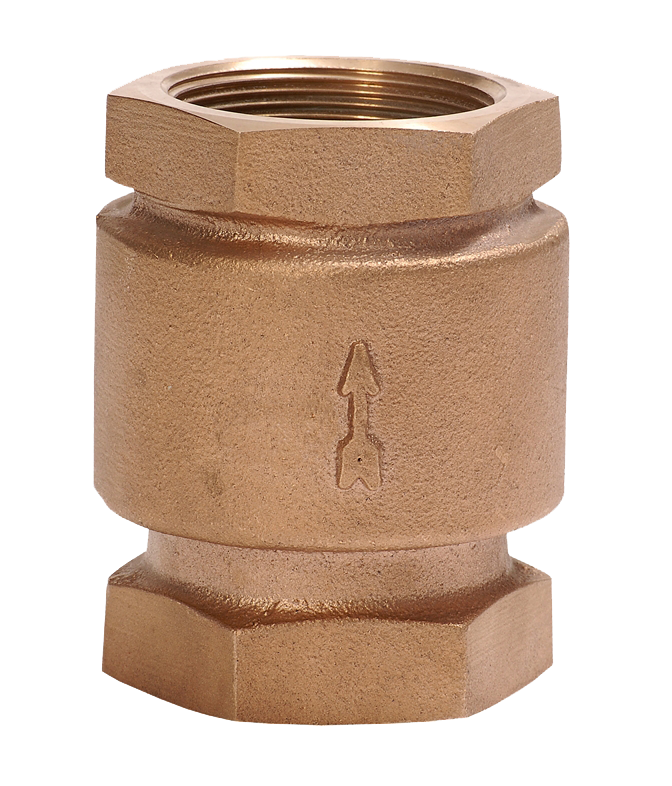

CHECK VALVE BRASS SPRING RETURN DIN PN 16
TECHNICAL DESCRIPTION
Check valve, with soft sealing – Teflon PTFE / metal and threaded connection.
WORKING FLUID / MEDIUM
• Steam up to 120 °C, thermal oil, fuels, lubricating oil and flammable hydraulic oils, petroleum, boiler feed water, sea water.
EXECUTION
• Other materials upon request.
Additional information
Materials

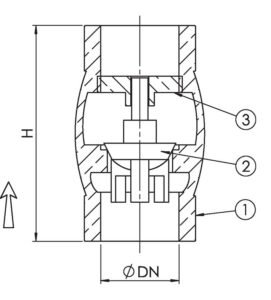

| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass CW710R; DIN SoMs59 |
| 2 | Valve | brass CW710R; DIN SoMs59 |
| 3 | Nut | brass CW710R; DIN SoMs59 |
Features
|
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions
| DN | PN | Flanges/PN | H | Weight (kg) |
|---|---|---|---|---|
| 15 | 16 | G 1/2" | 52 | 0.2 |
| 20 | 16 | G 3/4" | 55 | 0.4 |
| 25 | 16 | G1" | 59 | 0.6 |
| 32 | 16 | G 1 1/4" | 63 | 0.9 |
| 40 | 16 | G 1 1/2" | 71 | 1.3 |
| 50 | 16 | G 2" | 77 | 2 |
| 65 | 16 | G 2 1/2" | 96 | 3.5 |
| 80 | 16 | G 3" | 102 | 4 |
| 100 | 16 | G 4" | 120 | 5.4 |
