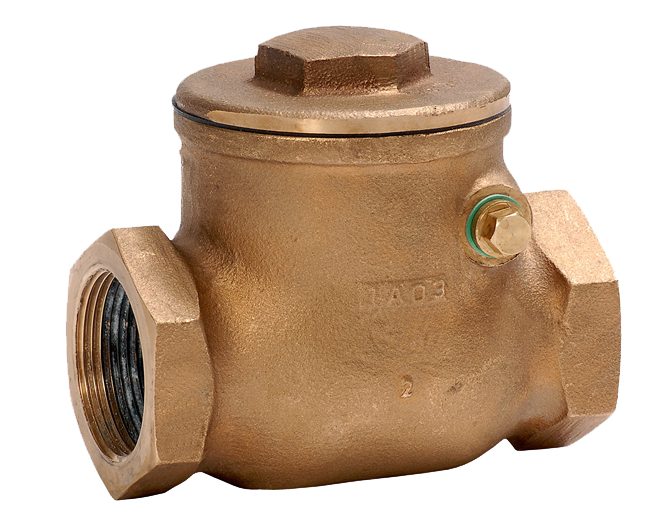

CHECK VALVE BRASS HORIZONTAL INSTALLATION DIN 3202 PN 16
TECHNICAL DESCRIPTION
Check valve, with soft seal – PTFE / metal and threaded connection.
For installation in horizontal and vertical positions, where the fluid enters below the valve.
WORKING FLUID / MEDIUM
• Fuels, lubricating oil and flammable hydraulic oils, petroleum, boiler feed water, condensate.
• Sea water.
EXECUTION
• Other materials upon request.
Additional information

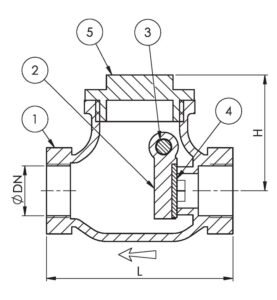

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass CW710R; DIN SoMs59 |
| 2 | Valve | brass CW710R; DIN SoMs59 |
| 3 | Stem | brass CW710R; DIN SoMs59 |
| 4 | Valve seal | Teflon/PTFE |
| 5 | Cover | brass CW710R; DIN SoMs59 |
Features
| SPECIFICATION | |
|---|---|
| Valve Standard | DIN |
| Connection standard | BSPP |
| Cover connection | threaded |
| Execution | straight |
| Connection | threaded |
| Operation | check valve |
| Drive | self-closing |
| T max. °C | 120 °C |
Dimensions
| DN | PN | Flanges/PN | L | H | Weight (kg) |
|---|---|---|---|---|---|
| 15 | 16 | G 1/2" | 45 | 42 | 0.3 |
| 20 | 16 | G 3/4" | 53 | 46 | 0.5 |
| 25 | 16 | G1" | 63 | 49 | 0.7 |
| 32 | 16 | G 1 1/4" | 72 | 54 | 0.9 |
| 40 | 16 | G 1 1/2" | 80 | 59 | 1.2 |
| 50 | 16 | G 2" | 91 | 67 | 1.8 |
| 65 | 16 | G 2 1/2" | 120 | 105 | 3.5 |
| 80 | 16 | G 3" | 135 | 125 | 5 |
| 100 | 16 | G 4" | 164 | 130 | 5 |
