CAST IRON ANGLE VALVE DIN 3202 F32, PN 10
CAST IRON ANGLE VALVE DIN 3202 F32, PN 10

CAST IRON VALVE STRAIGHT DIN 3202 F1 PN 16

TECHNICAL DESCRIPTION

Straight valve, with flange connection. Possible variations of functions depending on the design:

• shut-off valve
• control valve
• check valve.
• Valve sealing – metal to metal.
• Spindle type – pull-out.

WORKING FLUID / MEDIUM

• Water, steam, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.

OPTIONS

Closing spring when functioning as a check valve.

Dimensions: DN 15 – 200

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body gray cast iron EN-JL1040 (GG25)
2 Saddle stainless steel 1.4301
3 Valve/Control bracelet gray cast iron EN-JL1040 (GG25)/1.4301
4 Garnish graphite
5 Packing seal graphite packing
6 Lid gray cast iron EN-JL1040 (GG25)
7 Spindle stainless steel 1.4301
8 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C 180 °C



Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 16 16 130 95 65 4x14 177 120 3.8
20 16 16 150 105 75 4x14 179 120 4.3
25 16 16 160 115 85 4x14 198 120 5.4
32 16 16 180 140 100 4x18 198 120 7.1
40 16 16 200 150 110 4x18 221 140 9.8
50 16 16 230 165 125 4x18 224 140 13
65 16 16 290 185 145 4x18 267 140 17
80 16 16 310 200 160 8x18 292 160 25
100 16 16 350 220 180 8x18 325 160 35
125 16 16 400 250 210 8x18 370 200 50
150 16 16 480 285 240 8x22 420 200 10
200 16 16 600 340 295 12x22 560 400 134

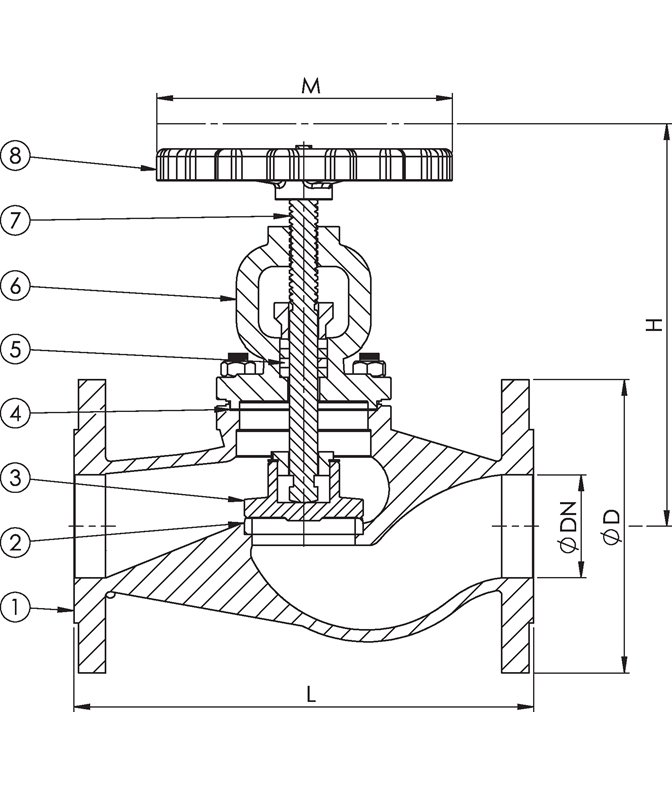

Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
