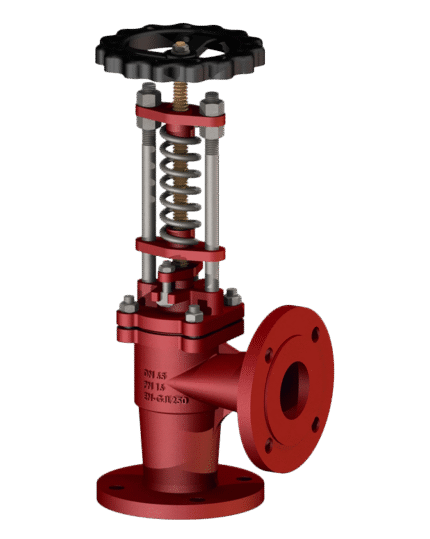

CAST IRON OUTBOARD ANGLE VALVE WITH SPRING DIN PN 16
CAST IRON OUTBOARD ANGLE VALVE WITH SPRING DIN PN 16

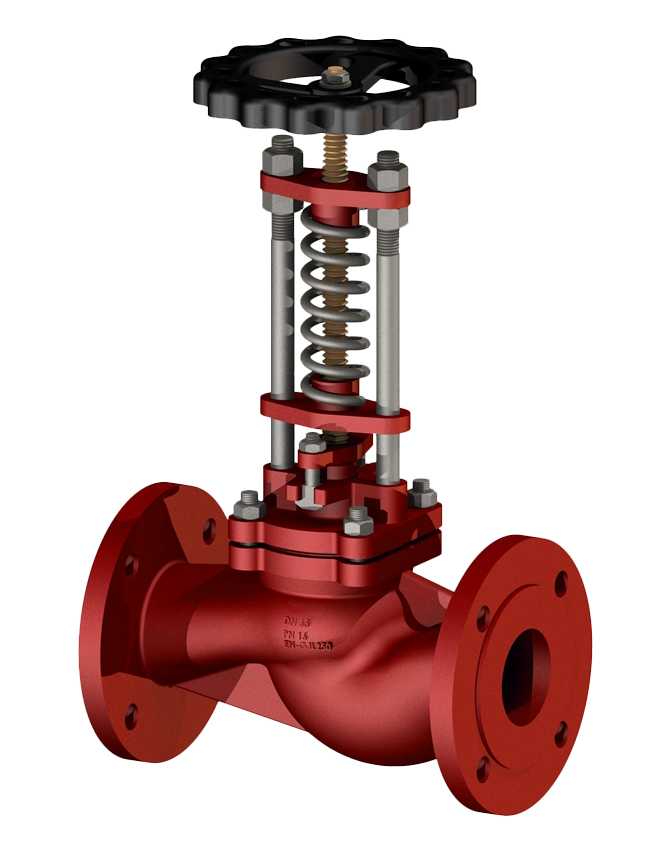

CAST IRON OUTBOARD VALVE STRAIGHT WITH SPRING DIN PN 16

TECHNICAL CHARACTERISTICS

Spring loaded outboard valves are mainly used for bilge water drainage. They maintain the system under pressure and reduce the use of check valves. Metal-sealed with extractable stem

WORKING FLUIDS / MEDIUM

• Bilge water
• Sea water

EXECUTION

• straight / angled
• Reversible

Dimensions: DN 15 – 200


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

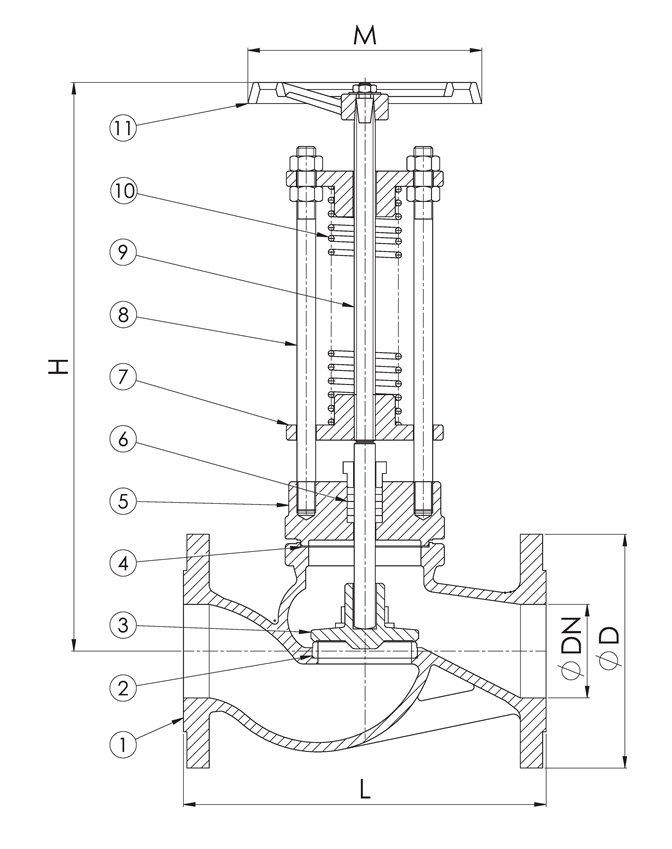

No. DETAILS MATERIALS
1 Body ductile iron EN-JS1025 (GGG40.3)
2 Saddle bronze CC491K (RG5)
3 Valve / DN 15-65 bronze CC491K (RG5)
3 Valve / DN 80-300 ductile iron EN-JS1025 (GGG40.3)
4 Lid seal graphite sealant
5 Lid ductile iron EN-JS1025 (GGG40.3)
6 Packing seal graphite packing
7 Oil seal ductile iron EN-JS1025 (GGG40.3)
8 Leaders stainless steel 1.4021 (AISI420)
9 Spindle brass CW710R (SoMs59)
10 Spring spring steel SH
11 Handwheel gray cast iron EN-JL1040 (GG25)

Features

Standard DIN
Joining EN 1092-2
Construction length EN 558-series 1
Lid connection bolted
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
DN 15 - 125 / T max. °C at 10 Bar 180 °C
DN 15 - 125 / T max. °C at 16 Bar 120 °C
DN 150 - 200 / T max. °C at 6 Bar 180 °C
DN 150 - 200 / T max. °C at 10 Bar 120 °C
Dimensions
DN PN Flanges/PN L D H M Weight (kg)
15 PN 16 PN 16 130 95 251 120 3
20 PN 16 PN 16 150 105 251 120 4
25 PN 16 PN 16 160 115 265 140 4.5
32 PN 16 PN 16 180 140 280 140 6
40 PN 16 PN 16 200 150 350 160 8
50 PN 16 PN 16 230 165 373 160 11
65 PN 16 PN 16 290 185 400 180 15
80 PN 16 PN 16 310 200 490 200 21
100 PN 16 PN 16 350 220 522 225 28
125 PN 16 PN 16 400 250 618 250 58
150 PN 10 PN 10 480 285 750 300 85
200 PN 10 PN 10 600 340 810 400 142
