CAST IRON OUTBOARD VALVE STRAIGHT WITH SPRING DIN PN 16
CAST IRON OUTBOARD VALVE STRAIGHT WITH SPRING DIN PN 16
Back to products

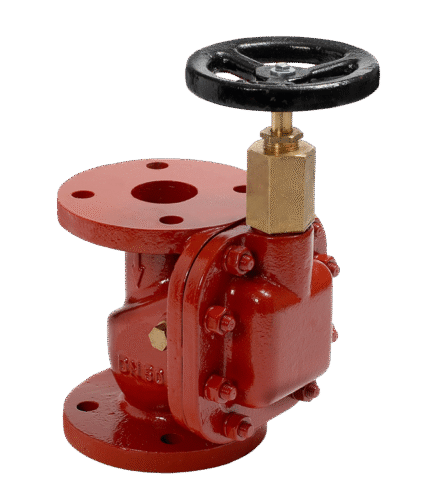

DISTRICT CAST IRON STORM VALVE STRAIGHT FLANGE DIN PN 10
DISTRICT CAST IRON STORM VALVE STRAIGHT FLANGE DIN PN 10

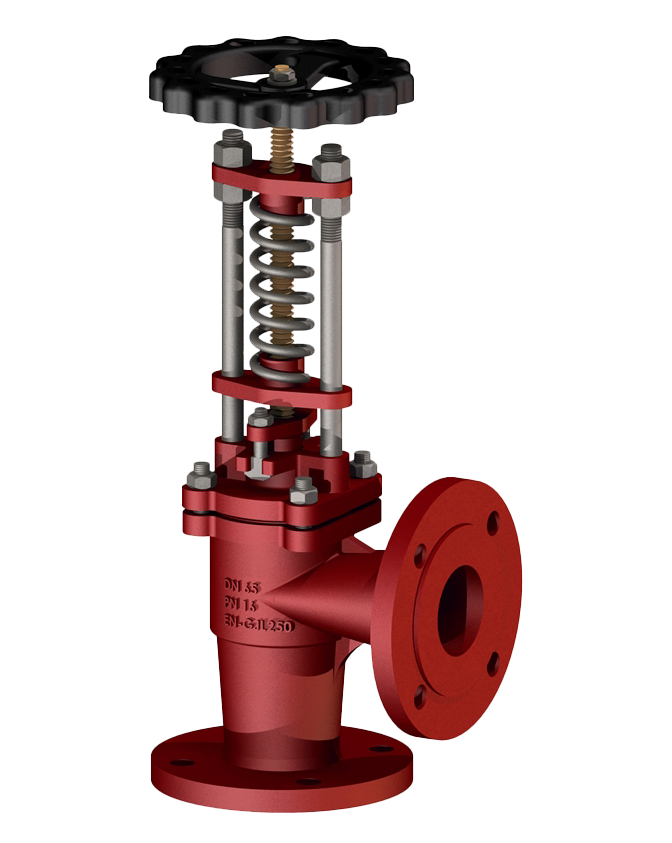

CAST IRON OUTBOARD ANGLE VALVE WITH SPRING DIN PN 16

TECHNICAL CHARACTERISTICS

Spring loaded outboard valves are mainly used for bilge water drainage. They maintain the system under pressure and reduce the use of check valves. Metal-sealed with extractable stem

WORKING FLUIDS / MEDIUM

• Bilge water
• Sea water

EXECUTION

• Straight / angled
• Reversible

Dimensions: DN 15 – 200


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information

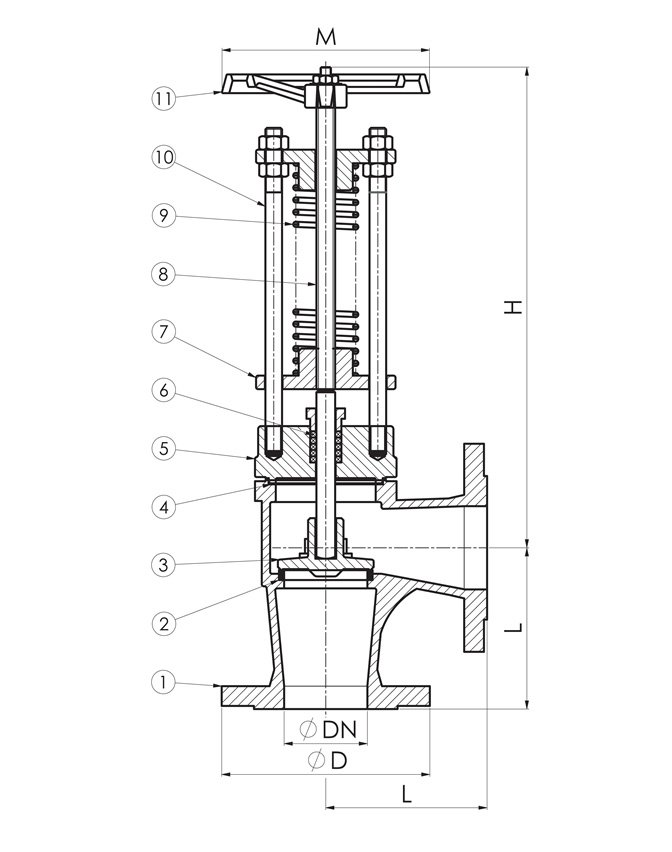

Materials

No. DETAILS MATERIALS
1 Body ductile iron EN-JS1025 (GGG40.3)
2 Saddle bronze CC491K (RG5)
3 Valve / DN 15-65 bronze CC491K (RG5)
3 Valve / DN 80-300 ductile iron EN-JS1025 (GGG40.3)
4 Lid seal graphite sealant
5 Lid ductile iron EN-JS1025 (GGG40.3)
6 Packing seal graphite packing
7 Oil seal ductile iron EN-JS1025 (GGG40.3)
8 Leaders stainless steel 1.4021 (AISI420)
9 Spindle brass CW710R (SoMs59)
10 Spring spring steel SH
11 Handwheel gray cast iron EN-JL1040 (GG25)

Features

Standard DIN
Joining EN 1092-2
Construction length EN 558-series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn / with spring
DN 15 - 125 / T max. °C at 10 Bar 180 °C
DN 15 - 125 / T max. °C at 16 Bar 120 °C
DN 150 - 200 / T max. °C at 6 Bar 180 °C
DN 150 - 200 / T max. °C at 10 Bar 120 °C
Dimensions
DN PN Flanges/PN L D H M Weight (kg)
15 PN 16 PN 16 90 95 245 120 4
20 PN 16 PN 16 95 105 245 120 4.2
25 PN 16 PN 16 100 115 253 140 5
32 PN 16 PN 16 105 140 274 140 7
40 PN 16 PN 16 115 150 346 160 10
50 PN 16 PN 16 125 165 360 160 13
65 PN 16 PN 16 145 185 381 180 17
80 PN 16 PN 16 155 200 462 200 23
100 PN 16 PN 16 175 220 500 225 35
125 PN 16 PN 16 200 250 565 250 55
150 PN 10 PN 10 225 285 684 300 72
200 PN 10 PN 10 275 340 715 400 112
