CAST IRON ANGLE VALVE DIN 3202 F32, PN 16
CAST IRON ANGLE VALVE DIN 3202 F32, PN 16
Back to products
STEEL STRAIGHT VALVE JIS F7313
STEEL STRAIGHT VALVE JIS F7313

CAST IRON ANGLE VALVE DIN 3202 F32, PN 6

TECHNICAL DESCRIPTION

Angle valve, with flange connection. Possible variations of functions depending on the design:

• shut-off valve
• regulating valve
• check valve

Sealing of the plug (valve) – metal to metal.
Type of the spindle (spindle) – extracting.

WORKING FLUID / MEDIUM

Water, steam, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.

OPTIONS

Closing spring when functioning as a check valve.

Dimensions: DN 15 – 300

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body gray cast iron EN-JL1040 (GG25)
2 Saddle stainless steel 1.4301
3 Valve gray cast iron EN-JL1040 (GG25)/1.4301
4 Garnish graphite
5 Oil seal graphite packing
6 Lid gray cast iron EN-JL1040 (GG25)
7 Spindle stainless steel 1.4301
8 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F32
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C 180 °C



Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 6 6 90 80 55 4x11 173 120 4
20 6 6 95 90 65 4x11 173 120 4.5
25 6 6 100 100 75 4x11 190 120 5.2
32 6 6 105 120 90 4x14 190 120 6.7
40 6 6 115 130 100 4x14 225 140 9.6
50 6 6 125 140 110 4x14 218 140 12
65 6 6 145 160 130 4x14 246 140 16
80 6 6 155 190 150 4x18 274 160 21
100 6 6 175 210 170 4x18 303 160 33
125 6 6 200 240 200 8x18 310 200 43
150 6 6 225 265 225 8x18 360 200 70
200 6 6 275 320 280 8x18 488 400 110
250 6 6 325 375 335 12x18 550 400 160
300 6 6 375 440 395 12x18 786 500 280

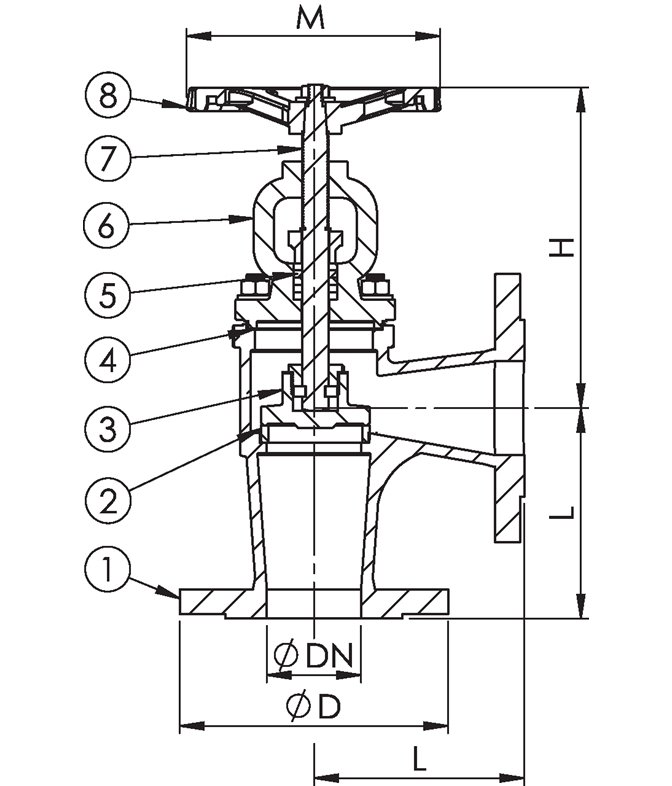

Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
