CAST IRON ANGLE VALVE DIN 3202 F32, PN 16

TECHNICAL DESCRIPTION

Angle valve, with flange connection. Possible variations of functions depending on the design:

• shut-off valve
• regulating valve
• check valve

Valve seal – metal to metal.
Spindle type – pull-out.

WORKING FLUID / MEDIUM

Water, steam, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.

OPTIONS

Closing spring when functioning as a check valve.

Dimensions: DN 15 – 300

Additional information

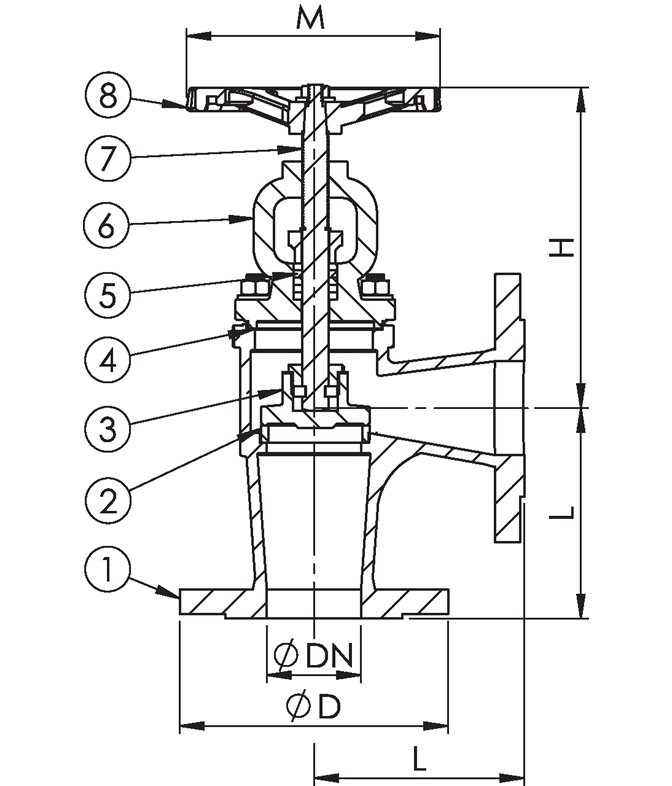

Materials

No. DETAILS MATERIALS
1 Body gray cast iron EN-JL1040 (GG25)
2 Saddle stainless steel 1.4301
3 Valve gray cast iron EN-JL1040 (GG25)/1.4301
4 Garnish graphite
5 Oil seal graphite packing
6 Lid gray cast iron EN-JL1040 (GG25)
7 Spindle stainless steel 1.4301
8 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F32
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C 180 °C



Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 PN16 PN16 90 95 65 4x14 173 120 4
20 PN16 PN16 95 105 75 4x14 173 120 4.5
25 PN16 PN16 100 115 85 4x14 190 120 5.2
32 PN16 PN16 105 140 100 4x18 190 120 6.7
40 PN16 PN16 115 150 110 4x18 225 140 9.6
50 PN16 PN16 125 165 125 4x18 218 140 12
65 PN16 PN16 145 185 145 8x18 246 140 16
80 PN16 PN16 155 200 160 8x18 274 160 21
100 PN16 PN16 175 220 180 8x18 303 160 33
125 PN16 PN16 200 250 210 8x18 310 200 43
150 PN16 PN16 225 285 240 8x22 360 200 70
200 PN10 PN10 275 340 295 8x22 488 400 110
250 PN10 PN10 325 405 355 12x26 550 400 160
300 PN10 PN10 375 460 410 12x26 786 500 280
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
