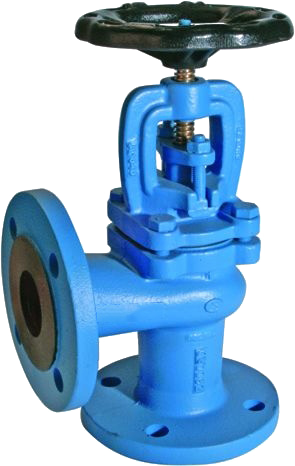

CAST IRON ANGLE VALVE DIN 3202 F32, PN 16
CAST IRON ANGLE VALVE DIN 3202 F32, PN 16

CAST IRON ANGLE VALVE DIN 3202 F32, PN 10

TECHNICAL DESCRIPTION

Angle valve, with flange connection. Possible variations of functions depending on the design:

• shut-off valve
• regulating valve
• check valve

Valve seal – metal to metal.
Spindle type – pull-out.

WORKING FLUID / MEDIUM

Water, steam, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.

OPTIONS

Closing spring when functioning as a check valve.

Dimensions: DN 15 – 300

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

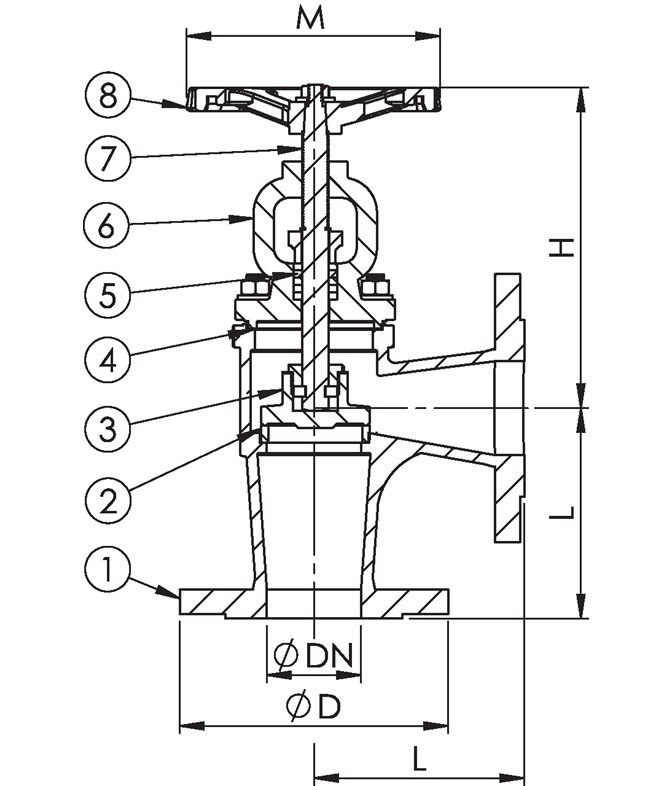

No. DETAILS MATERIALS
1 Body gray cast iron EN-JL1040 (GG25)
2 Saddle stainless steel 1.4301
3 Valve gray cast iron EN-JL1040 (GG25)/1.4301
4 Garnish graphite
5 Oil seal graphite packing
6 Lid gray cast iron EN-JL1040 (GG25)
7 Spindle stainless steel 1.4301
8 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F32
Joining EN 1092-2
Construction length EN 558, series 1
Lid connection bolted
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C 180 °C



Dimensions
DN PN Flanges/PN L D ØP* nxd H M Weight (kg)
15 10 10 90 95 65 4x14 173 120 4
20 10 10 95 105 75 4x14 173 120 4.5
25 10 10 100 115 85 4x14 190 120 5.2
32 10 10 105 140 100 4x18 190 120 6.7
40 10 10 115 150 110 4x18 225 140 9.6
50 10 10 125 165 125 4x18 218 140 12
65 10 10 145 185 145 8x18 246 140 16
80 10 10 155 200 160 8x18 274 160 21
100 10 10 175 220 180 8x18 303 160 33
125 10 10 200 250 210 8x18 310 200 43
150 10 10 225 285 240 8x22 360 200 70
200 10 10 275 340 295 8x22 488 400 110
250 10 10 325 395 350 12x22 550 400 160
300 10 10 375 445 400 12x22 786 500 280
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
