CAP TYPE STORZ “THREADED” FOR FIRE VALVE BRONZE DIN PN 16
TECHNICAL DESCRIPTION

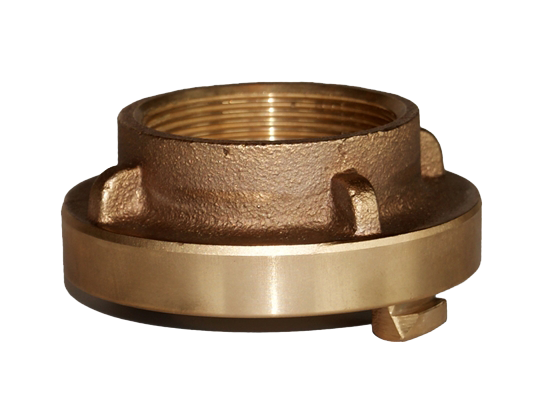

Bronze cap for fire hose coupling – Storz type
WORKING FLUID / MEDIUM
• Sea water
• Fresh water
ANNEX
• In fire systems
Maximum operating temperature 80 °C
JOIN
• Standard for Storz coupling
Dimensions: G 1″ – 4″
Additional information

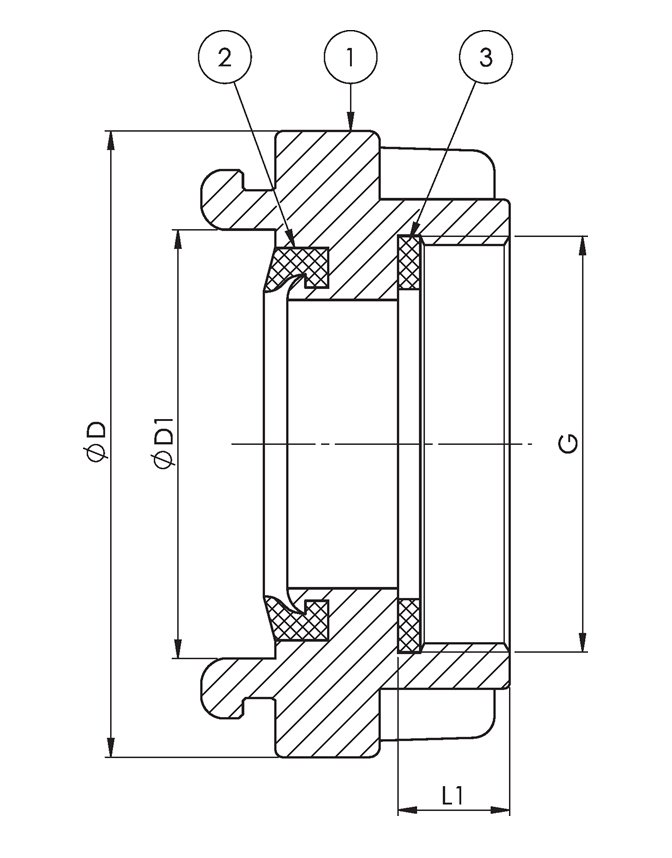

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Coupling | bronze CC491K (RG5) |
| 2 | Sealant | NBR rubber |
| 3 | Sealant | NBR rubber |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Coupling-type | Storz |
| Joining | thread |
Dimensions
| G | D | D1 | L1 | Type | kg |
|---|---|---|---|---|---|
| G1" | 55 | 31 | 17 | D-25 | 0.2 |
| G1" | 98 | 66 | 17 | C-52 | 0.7 |
| G 1 1/4" | 98 | 66 | 17 | C-52 | 0.7 |
| G 1 1/2" | 98 | 66 | 19 | C-52 | 0.7 |
| G 2" | 98 | 66 | 19 | C-52 | 0.6 |
| G 2 1/2" | 98 | 66 | 21 | C-52 | 0.8 |
| G 2" | 118 | 81 | 19 | 65 | 1 |
| G 2 1/2" | 118 | 81 | 21 | 65 | 1 |
| G 2 1/2" | 126 | 89 | 21 | B-75 | 1.1 |
| G 4" | 155 | 115 | 23 | 100 | 1.8 |
| G 4" | 182 | 133 | 23 | A 100 | 3.2 |
