CAP TYPE STORZ “DEAF” FOR FIRE VALVE BRONZE DIN PN 16
TECHNICAL DESCRIPTION

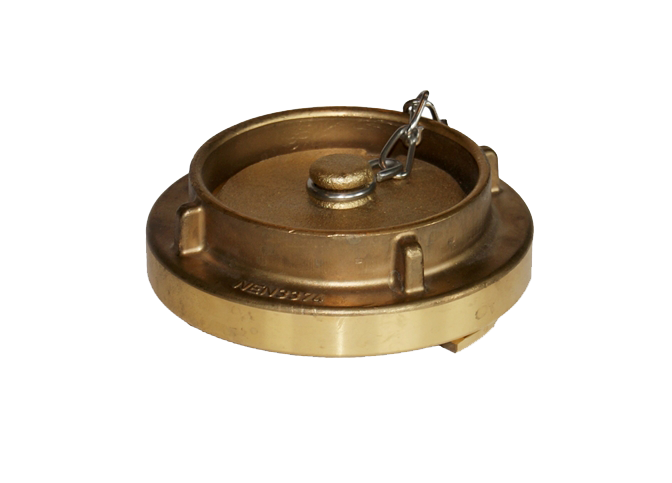

Bronze cap – blind, for fire hose coupling – Storz type
WORKING FLUID / MEDIUM
• Sea water
• Fresh water
ANNEX
• In fire systems
Maximum operating temperature 80 °C
JOIN
• Standard for Storz coupling
Dimensions: G 1″ – 2 1/2″
Additional information

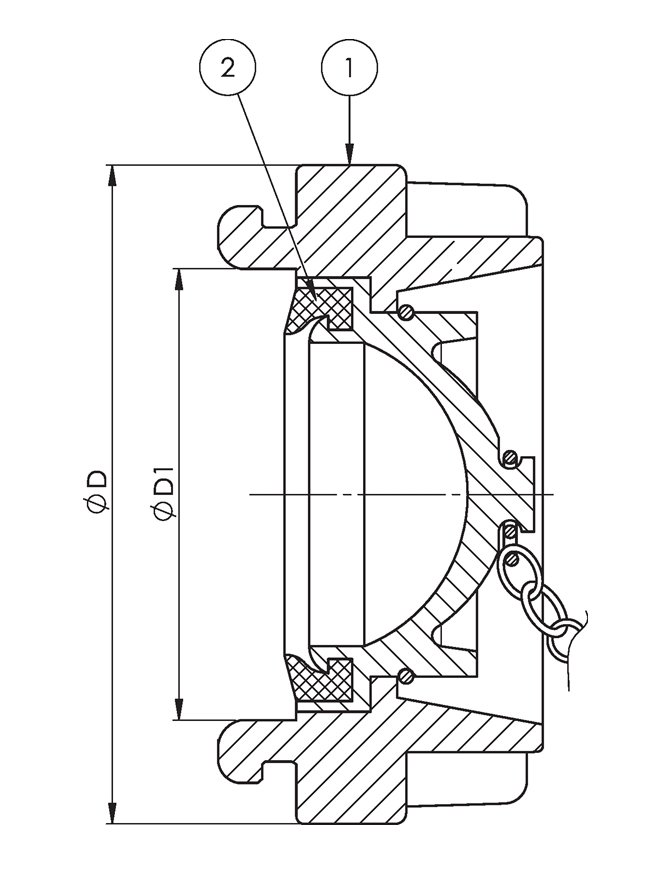

Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Coupling | bronze CC491K (RG5) |
| 2 | Sealant | NBR rubber |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Coupling-type | Storz |
Dimensions
| G | D | D1 | Type | kg |
|---|---|---|---|---|
| G1" | 55 | 31 | D-25 | 0.3 |
| G1" | 98 | 66 | C-52 | 0.8 |
| G 1 1/4" | 118 | 81 | 65 | 1.1 |
| G 1 1/2" | 126 | 89 | B-75 | 1.3 |
| G 2" | 155 | 115 | 100 | 2.1 |
| G 2 1/2" | 182 | 133 | A 100 | 3 |
