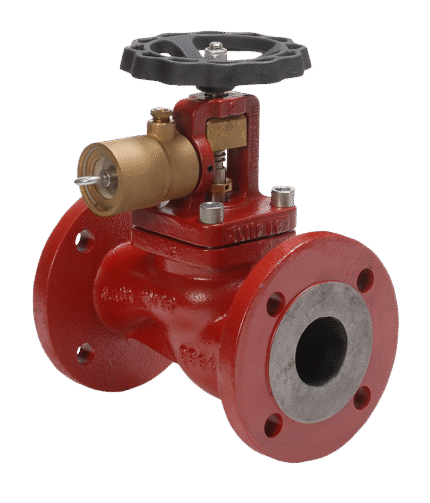

QUICK CLOSING VALVE DISTRICT IRON STRAIGHT FLANGE DIN PN 16
QUICK CLOSING VALVE DISTRICT IRON STRAIGHT FLANGE DIN PN 16
Back to products
BUTTERFLY VALVE DOUBLE FLANGE DIN PN 16
BUTTERFLY VALVE DOUBLE FLANGE DIN PN 16

BUTTERFLY VALVE DOUBLE FLANGE DIN PN 10

TECHNICAL DESCRIPTION

Butterfly valve, soft-sealing, centric with a one-piece spindle. The sealing element – a rubber cuff vulcanized to the body. Top flange according to ISO 5211.

The vulcanized cuff allows the valve to perform its functions even at negative pressure values (vacuum).

WORKING FLUID / MEDIUM

• Fuels, lubricating oil and combustible hydraulic oils,
• Petroleum, non-combustible hydraulic fluids, feed water for boilers, condensate.
• Drinking water
• Sea water.

PERFORMANCE

• AISI 316 stainless steel disc.
• Cuff – rubber EPDM or NBR, (on request FPM/FKM).
• Other materials on request.

**OPTIONS**

• Manual drive
• Geared drive
• Electric or pneumatic drive.

Dimensions: DN 50 – 600


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information

Materials

No. DETAILS MATERIALS
1 Body grey cast iron EN-JL1040 (GG25)
2.1 Flap (disc) malleable cast iron
EN-JL1030 (GGG40)+Chromium. coating
2.2 Flap (disc) stainless steel. 1.4401 (AISI316)
3 Pin stainless steel. 1.4408 (AISI316)
4 Cuff NBR/EPDM Rubber
5 Spindle Stainless steel. Art. 1.4408 (AISI AISI 316)

Characteristics

SPECIFICATION EN 1092-1 PN10
Standard Flanges ISO 5211
Top flange EN 558 Series 14
Construction Length straight
Performance Flanged PN10
Accession manual, with gearbox, electric drive, pneumatic drive
Management Sectoral
Driven NBR cuff +90 °C
T max. [°C] EPDM cuff +130 °C

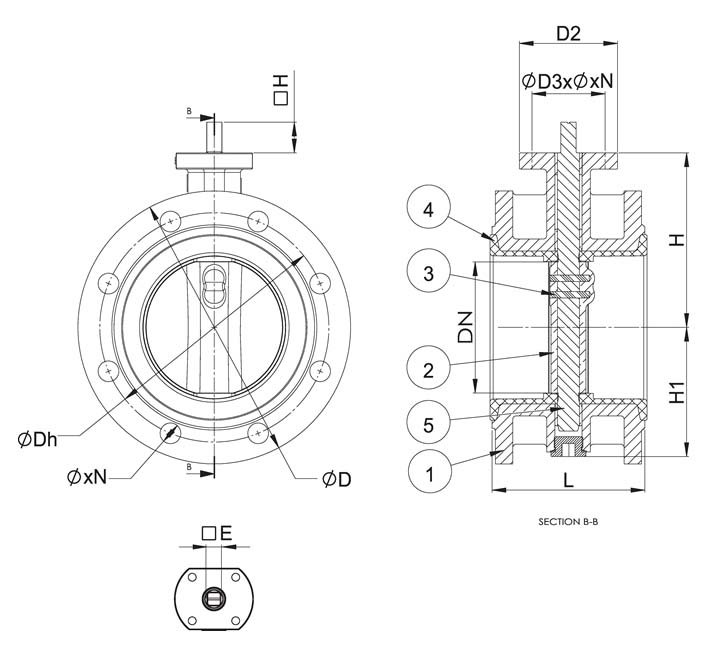

Dimensions

sizes

DN PN Flanges/PN L ØD ØDh NxØ ØD3xØxN H H1 ØH ØE Weight (kg)
50 10 PN10 108 165 125 4 x 19 50x8x4 120 83 32 11 10
65 10 PN10 112 185 145 4 x 19 50x8x4 130 93 32 11 12
80 10 PN10 114 200 160 8 x 19 50x8x4 145 100 32 11 14
100 10 PN10 127 220 180 8 x 19 70x10x4 155 114 32 14 16
125 10 PN10 140 250 210 8 x 19 70x10x4 170 125 32 16 20
150 10 PN10 140 285 240 8 x 23 70x10x4 190 143 32 16 27
200 10 PN10 152 340 295 8 x 23 102x12x4 205 170 45 20 35
250 10 PN10 165 395 350 12 x 23 102x12x4 235 198 45 24 51
300 10 PN10 178 445 400 12 x 23 102x12x4 280 223 45 26 62
350 10 PN10 190 505 460 16 x 23 102x12x4 310 270 45 26 90
400 10 PN10 216 565 515 16 x 28 140x18x4 340 300 51 28 124
450 10 PN10 222 615 565 20 x 28 140x18x4 375 340 51 30 180
500 10 PN10 229 670 620 20 x 28 165x22x4 430 355 57 36 210
600 10 PN10 267 780 725 20 x 31 165x22x4 500 410 70 40 302
