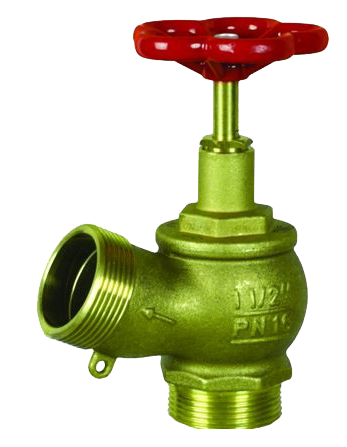

FIRE VALVE ANGLE BRASS 30 ° THREADS DIN PN 16
FIRE VALVE ANGLE BRASS 30 ° THREADS DIN PN 16
Back to products
BRONZE VALVE STRAIGHT JIS F7303 16K
BRONZE VALVE STRAIGHT JIS F7303 16K

BRONZE VALVE STRAIGHT JIS F7301 5K

TECHNICAL DESCRIPTION

Straight valve with flange connection. Possible variations of the function depending on the design.

• shut-off valve
• regulating valve
• check valve

Valve seat sealing – metal to metal
Spindle type – pull-out

WORKING FLUID / MEDIUM

• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended
• Sea water

OPTIONS

• Spring for check valve

Dimensions: DN 15 – 150


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

No. DETAILS MATERIALS
1 Body / Lid bronze CC491K (RG5)
2 Saddle bronze CC491K (RG5)
3 Valve bronze CC491K (RG5)
Spindle brass
Handwheel gray cast iron (GG25)
Spindle seal graphite gasket

Features

SPECIFICATION
Standard JIS
Joining JIS B2220 5K
Construction length JIS B2002
Lid connection threaded
Execution straight
Joining flanged
Management manually with flywheel
Drive multi-turn
T max. °C at 5 Bar 205 °C
T max. °C at 7 Bar 120 °C

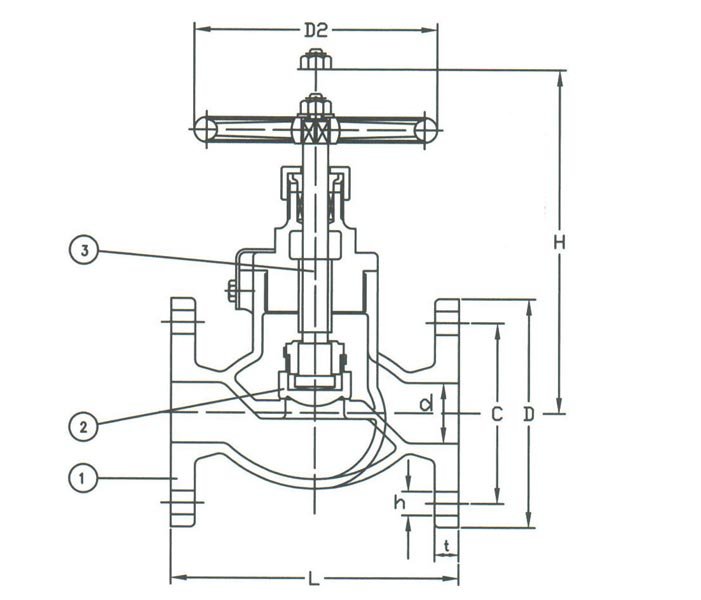

Dimensions
DN PN Flanges/PN L D C nx Øh H (open) D2 Weight (kg)
15 5K 5K 100 80 60 4x12 130 80 2.02
20 5K 5K 110 85 65 4x12 140 100 2.86
25 5K 5K 120 95 75 4x12 160 125 3.54
32 5K 5K 140 115 90 4x15 170 125 5
40 5K 5K 160 120 95 4x15 190 140 6.48
50 5K 5K 210 130 105 4x15 235 140 11.7
65 5K 5K 250 155 130 4x15 260 160 17
