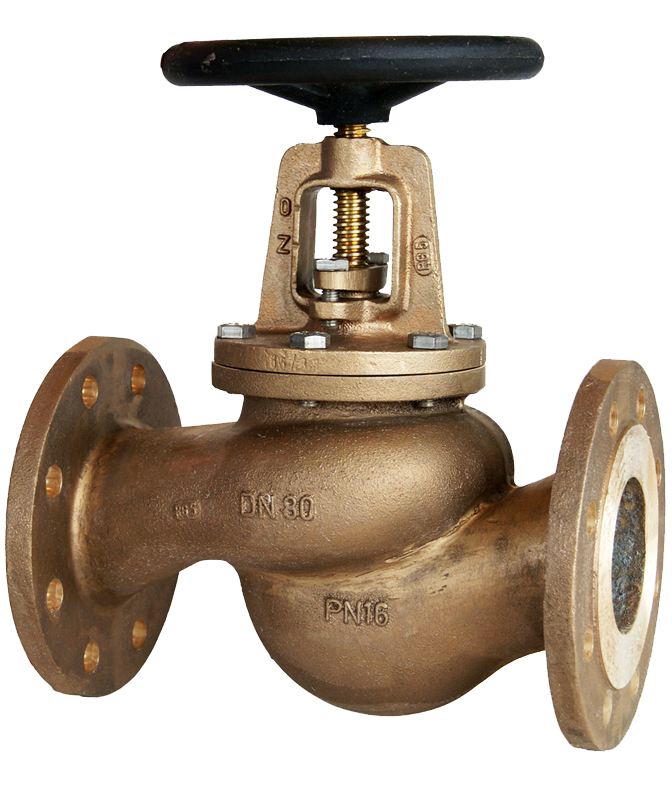

BRONZE VALVE STRAIGHT DIN 3202 F32 PN 16
BRONZE VALVE STRAIGHT DIN 3202 F32 PN 16

BRONZE VALVE STRAIGHT DIN 3202 F1 PN 16

TECHNICAL DESCRIPTION

Straight valve with flange connection. Possible variations of the function depending on the design.

• shut-off valve
• check valve.

Extraction spindle, bolted cover, metal-to-metal sealing.
For warm sea water, it is recommended to use a spindle made of bronze
(zinc-free), CuSn6.

WORKING FLUID / MEDIUM

Water, fuels, lubricating and flammable hydraulic oils, boiler feed water, seawater.

EXECUTION

• Spindle material: CuSn6
• Plug for operation as a check valve



Dimensions: DN 15 – 150


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information

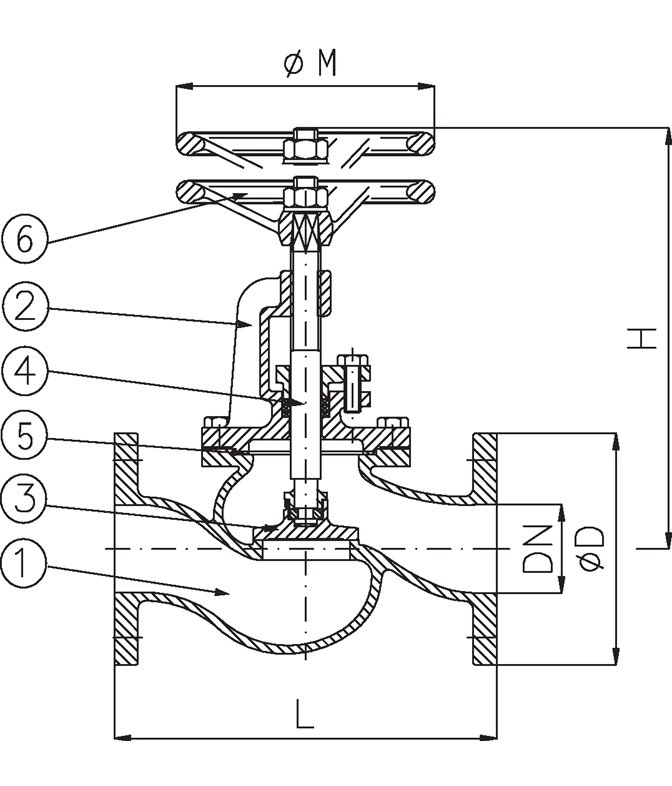

Materials

No. DETAILS MATERIALS
1 Body bronze CC491K (RG5)
2 Lid bronze CC491K (RG5)
3 Valve DN 15 - 80 brass CW710R (SoMs59)
3 Valve DN 80 - 150 bronze CC491K (RG5)
4 Spindle brass CW710R (SoMs59)
5 Lid seal rubber-reinforced
6 Handwheel: DN 15 - 80 (sheet metal)
6.1 Handwheel DN 100 - 150 (cast iron)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining EN 1092-3
Construction length EN 558, series 1
Lid connection on bolts
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C up to 225°C
T max.(steam) °C up to 180°C





Dimensions
DN PN Flanges/PN L D ØP nxd H M Weight (kg)
15 16 16 100 95 65 4x14 155 80 2.1
20 16 16 110 105 75 4x14 160 80 2.6
25 16 16 120 115 85 4x14 175 80 3.5
32 16 16 135 140 100 4x18 180 100 4.5
40 16 16 150 150 110 4x18 205 120 6.7
50 16 16 180 165 125 4x18 215 120 9.2
65 16 16 200 185 145 4x18 235 160 13
80 16 16 230 200 160 8x18 275 160 18
100 16 16 280 220 180 8x18 325 250 27
125 16 16 350 250 210 8x18 365 250 36
150 16 16 400 285 240 8x22 405 250 52
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
