BRONZE VALVE “HOSE VALVE” ANGLE JIS F7334 5K

TECHNICAL DESCRIPTION

Bronze angle valve with flange connection, type “HOSE VALVE” according to JIS F7334 5K. Possible variations of the function depending on the design.

• shut-off valve

Valve seat sealing – metal to metal
Spindle type – pull-out

APPLICATION / WORKING FLUID

• Fire systems, deck air and wash systems
• Seawater

Dimensions: DN 15 – 50


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

No. DETAILS MATERIALS
1 Body / Lid bronze CC491K (RG5)
2 Seat/valve bronze CC491K (RG5)
3 Spindle bronze CC491K (RG5)
Handwheel gray cast iron (GG25)
Spindle seal graphite gasket
4 Cap bronze CC491K (RG5)

Features

SPECIFICATION
Standard JIS
Joining JIS B2220 5K
Construction length JIS B2002
Lid connection threaded
Execution angular
Joining flanged
Management manually with flywheel
Drive multi-turn
T max. °C at 5 Bar 205 °C
T max. °C at 7 Bar 120 °C
Dimensions

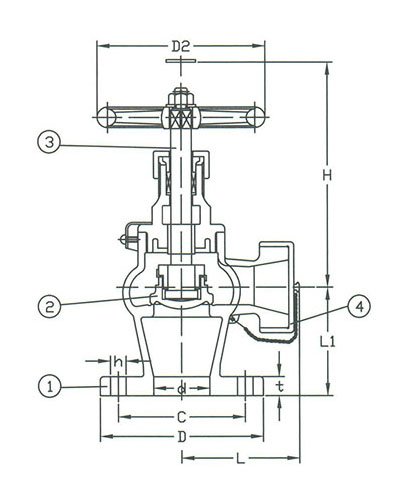

DN PN Flanges/PN L1 D C nx Øh H (open) D2 Weight (kg)
15 5K 5K 55 80 60 4x12 120 80 1.98
20 5K 5K 60 85 65 4x12 130 100 2.73
25 5K 5K 65 95 75 4x12 145 125 3.44
32 5K 5K 80 115 90 4x15 150 125 4.77
40 5K 5K 85 120 95 4x15 165 140 5.99
50 5K 5K 100 130 105 4x15 - 140 10.1
