BRONZE THREADED STRAIGHT VALVE DIN 3202 F1, PN 16
TECHNICAL DESCRIPTION
Straight valve with threaded connection. Possible function depending on the design.
• shut-off valve
CONSTRUCTION FEATURES
• Extraction spindle.
• Threaded cover
• Sealing method – metal / PTFE or other technical plastic.
WORKING FLUID / MEDIUM
water, steam, fuels, lubricating oils, non-flammable hydraulic fluids, boiler feed water, seawater.
Dimensions:1/2″ – 2″
Additional information
Materials

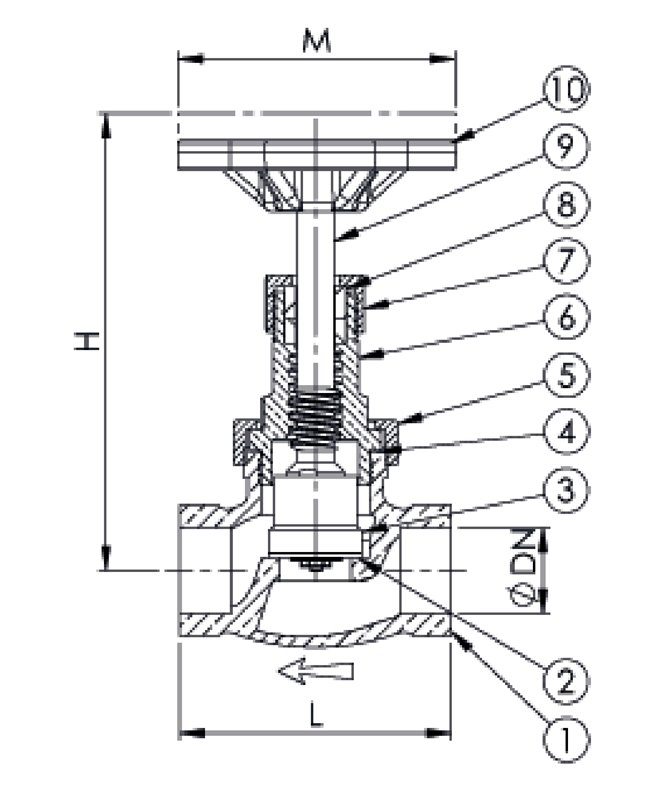

| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | bronze CC491K (RG5) |
| 2 | Saddle | Teflon/PTFE |
| 3 | Valve | bronze CC491K (RG5) |
| 4 | Lid seal | Teflon/PTFE |
| 5 | Lock nut | bronze CC491K (RG5) |
| 6 | Lid | bronze CC491K (RG5) |
| 7 | Sealing ring | Teflon/PTFE |
| 8 | Packing nut | brass CW614N (Ms58) |
| 9 | Spindle | brass CW710R (SoMs59) |
| 10 | Handwheel | gray cast iron EN-JL1040 (GG25) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN 3202 F1 |
| Joining | Thread |
| Construction length | EN 558, series 1 |
| Lid connection | threaded, secured |
| Execution | straight |
| Joining | flanged |
| Management | manually with wheel |
| Drive | multi-turn |
| T max.[°C] | Temperature up to 225°C |
| steam up to 180°C | |
Dimensions
| DN | PN | Thread/BSP | L | D | ØP | M | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 15 | 16 | G 1/2" | 75 | 95 | 65 | 60 | 0.5 |
| 20 | 16 | G 3/4" | 90 | 105 | 75 | 80 | 0.9 |
| 25 | 16 | G1" | 105 | 115 | 85 | 80 | 1.3 |
| 32 | 16 | G 1 1/4" | 115 | 140 | 100 | 90 | 1.8 |
| 40 | 16 | G 1 1/2" | 130 | 150 | 110 | 100 | 2.5 |
| 50 | 16 | G 2" | 160 | 165 | 125 | 120 | 4.1 |
| ++ | Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing. | ||||||
