BRONZE THREADED STRAIGHT VALVE DIN 3202 F1, PN 16
BRONZE THREADED STRAIGHT VALVE DIN 3202 F1, PN 16
Back to products
BRONZE ANGLE VALVE WITH BOLT COVER DIN 3202 F32, PN 16
BRONZE ANGLE VALVE WITH BOLT COVER DIN 3202 F32, PN 16

BRONZE THREADED ANGLE VALVE DIN 3202 F32, PN 16

TECHNICAL DESCRIPTION

Angle valve with threaded connection. Possible function depending on the design.

• shut-off valve

CONSTRUCTION FEATURES

• Extraction spindle.
• Threaded cover
• Sealing method – metal / PTFE or other technical plastic.

WORKING FLUID / MEDIUM

Water, steam, fuels, lubricating oils, non-flammable hydraulic fluids, boiler feed water, condensate, seawater.

Dimensions:1/2”- 3”

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

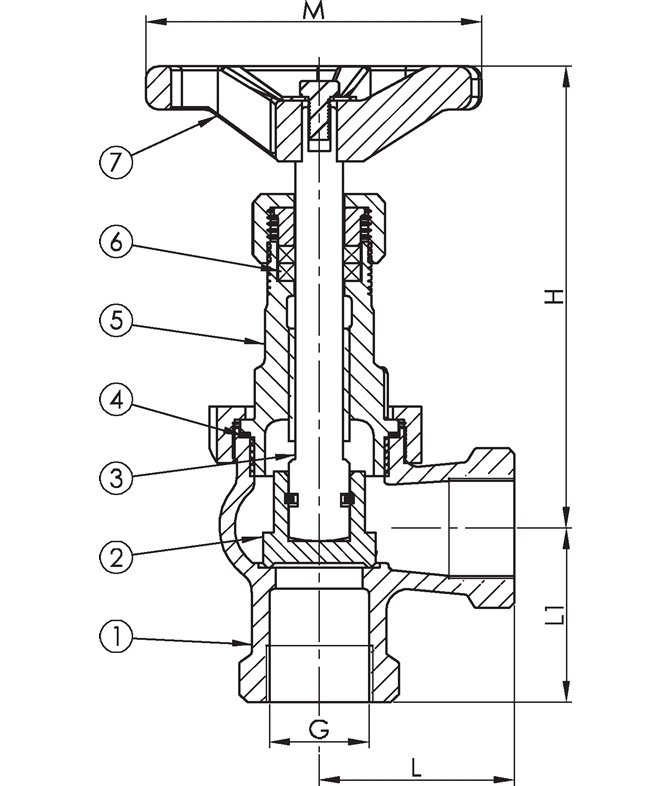

Materials

No. DETAILS SIZE MATERIAL
1 Body bronze CC491K (RG5)
2 Valve DN 8-50 bronze CC493K (RG7)
2 Valve DN 65-80 bronze CC491K (RG5)
3 Spindle brass CW710R (SoMs59)
4 Garnish Teflon/PTFE
5 Lid DN 8-32 bronze CC493K (RG7)
5 Lid DN 40-80 bronze CC491K (RG5)
6 Packing gland Teflon/PTFE
7 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F1
Joining threaded
Construction length EN 558, series 1
Lid connection threaded, secured
Execution angular
Joining flanged
Management manually with wheel
Drive multi-turn
T max. [°C] up to 225°C
Steam up to 180°C
Dimensions
DN PN Thread/G L H M Weight (kg)
8 16 G 1/4" 35 86 60 0.4
10 16 G 3/8" 35 86 60 0.5
15 16 G 1/2" 40 86 60 0.5
20 16 G 3/4" 45 100 80 0.7
25 16 G1" 50 105 80 1.2
32 16 G 1 1/4" 55 120 90 1.6
40 16 G 1 1/2" 65 135 100 2
50 16 G 2" 75 150 120 3.5
65 16 G 2 1/2" 90 230 160 7.6
80 16 G 3" 110 250 200 12
