BRONZE STRAIGHT CHECK VALVE WITH RING ARS-RG-N; S / DIN86502 PN 40

TECHNICAL DESCRIPTION

They are used to transport water – hot and cold, oils, steam, neutral gases, seawater, fuels, air, etc.

IMPLEMENTATION AND OPTIONS

• according to DIN 86501-ARS-RG-S
• body with internal parts made of stainless steel or bronze
• other materials on request

Dimensions: DN 6 – 32


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

No. DETAILS MATERIALS
1 Body bronze RG5
2 Interior details brass Ms58
3 Seat seal metal / metal

Features

SPECIFICATION
Standard DIN 86502
Valve (type) ARS-Rg-N; S
Valve (type) reversible
Lid connection threaded / secured against unscrewing
Execution straight
Login thread
Exodus snap ring
Management manually with wheel
Drive multi-turn
Temp. range [°C] -10°C ÷ 225°C

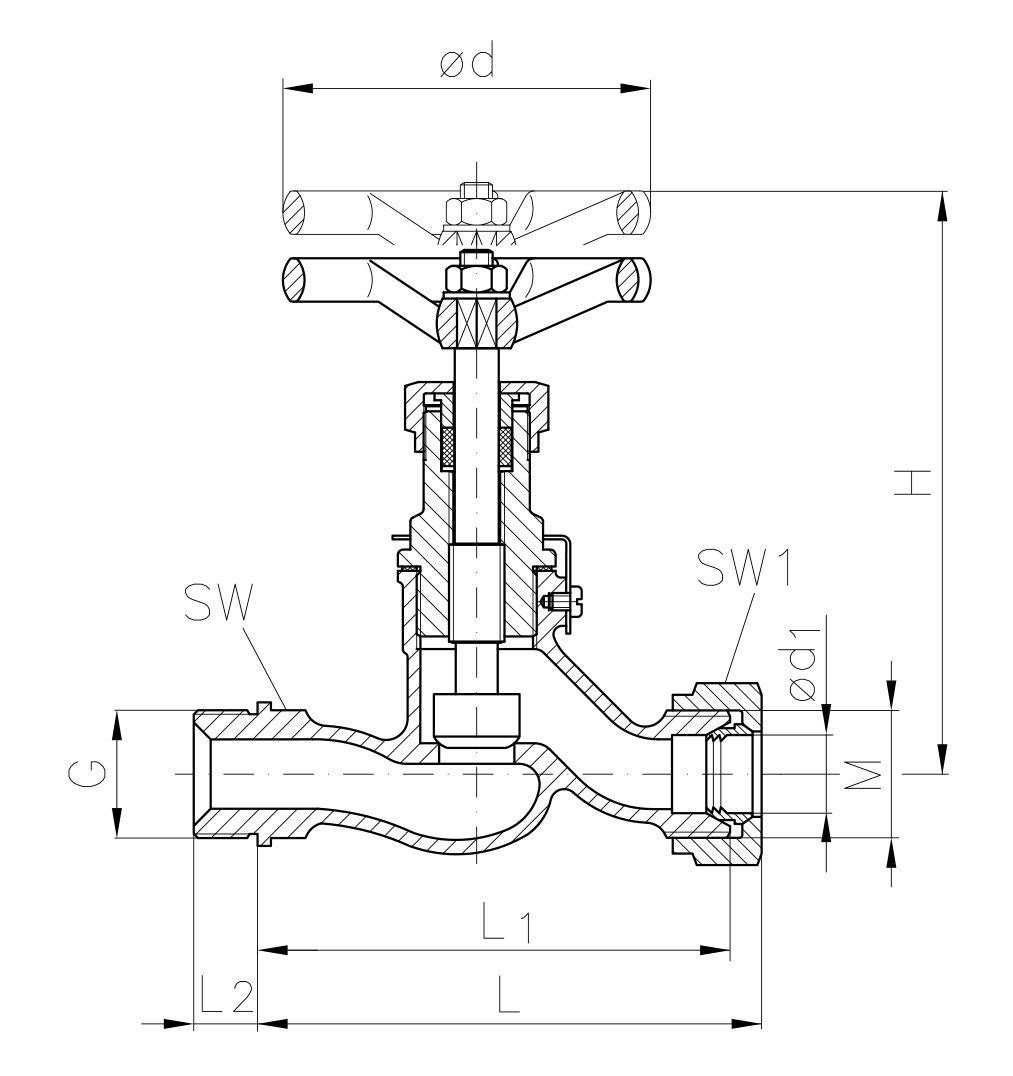

Dimensions
DN Ød1 G M L L1 L2 H Ød SW SW1 kg
6 10 3/8 M18x1.5 69 60 12 110 60 17 22 0.4
8 12 1/2 M20x1.5 73 64 14 110 60 19 24 0.4
10 14 1/2 M22x1.5 79 70 14 110 60 24 30 0.4
12 16 3/4 M24x1.5 94 87 16 130 80 24 30 0.7
16 20 3/4 M30x2 101 90 16 130 80 24 36 0.8
20 25 1 M36x2 122 110 18 150 100 30 46 1.3
25 30 11/4 M42x2 133 120 20 150 100 41 50 1.5
32 38 11/2 M52x2 154 140 22 180 120 - - 2.3
