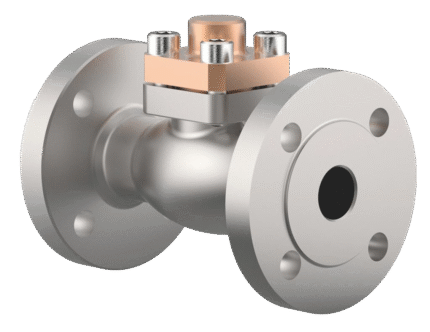

CRYOGENIC CHECK VALVE TYPE 05418 ON DIN PN40 FLANGES
CRYOGENIC CHECK VALVE TYPE 05418 ON DIN PN40 FLANGES
Back to products
GATE VALVES BRONZE THREADED DIN 3352 T12
GATE VALVES BRONZE THREADED DIN 3352 T12

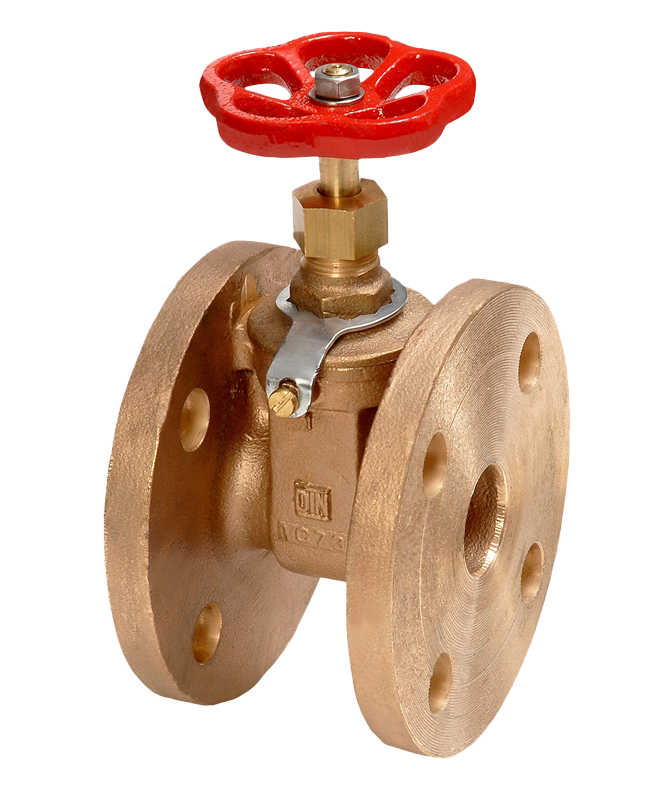

GATE VALVE BRONZE FLANGED DIN 3352 T11

TECHNICAL DESCRIPTION

Gate valves (clinkets) are used as shut-off elements in applications and systems for the transfer of liquids and steam. Manually operated with a handwheel. Submersible spindle.

WORKING FLUID / MEDIUM

Water, thermal oil, fuels, lubricating and combustible hydraulic oils, petroleum, seawater.

OPTIONS

Various materials upon request

Dimensions: DN 15 – 100

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

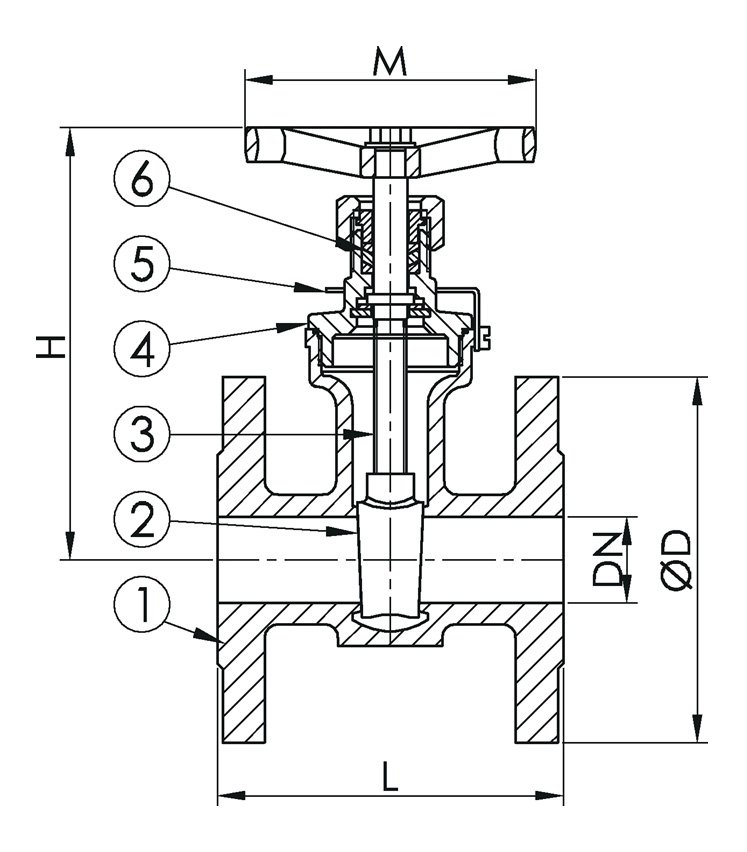

No. DETAILS MATERIALS
1 Body bronze CC491K (RG5)
2 Wedge bronze CC491K (RG5)
3 Spindle brass CW710R (SoMs59)
4 Cover bronze CC491K (RG5)
5 Safety plate galvanized steel
6 Cover seal rubber/glass teflon PTFE

Features

SPECIFICATION
Standard: DIN86720 (DIN 3552 T11) - flat flanges
Joining: Flange EN 1092-3/A (DIN 2501)
Construction length: EN 558 series 47 (DIN 3202 F19)
Attaching the lid: threaded, secured
Execution: straight
Connection: flanged
Management: flywheel
Drive: multi-turn
T max. PN16 / 120 °C; PN10 / 150 °C; PN6 / 180 °C
Dimensions
DN PN Flanges/PN L D ØP* H M Weight (kg)
15 PN 16 PN16 80 95 65 85 60 1.4
20 PN 16 PN16 75 105 75 100 60 1.8
25 PN 16 PN16 80 115 85 115 80 2.3
32 PN 16 PN16 90 140 100 130 80 3.6
40 PN 16 PN16 100 150 110 150 80 4.6
50 PN 16 PN16 110 165 125 180 100 6.4
65 PN 16 PN16 130 185 145 215 140 9.4
80 PN 16 PN16 150 200 160 250 160 12
100 PN 16 PN16 160 220 180 315 160 29
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.
