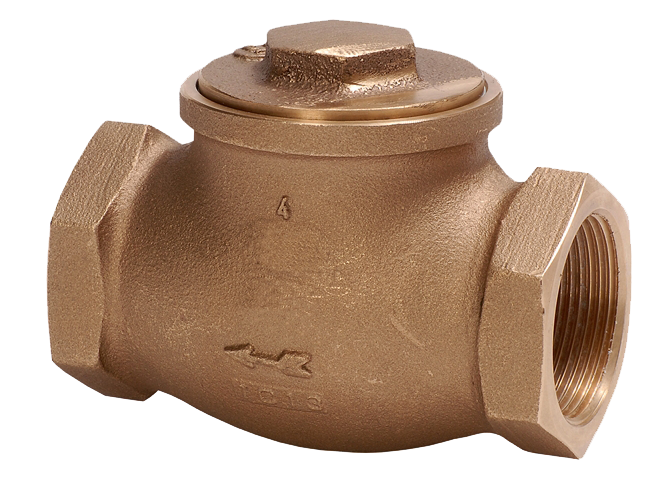

CHECK VALVE BRONZE SPRING RETURN DIN PN 16
TECHNICAL DESCRIPTION
Bronze check valve with spring. Sealing – metal / metal and threaded connection. Horizontal and vertical installation possible.
WORKING FLUID / MEDIUM
• Steam, thermal oil, fuels, lubricating oil and flammable hydraulic oils, air, gas, petroleum, non-flammable hydraulic fluids, boiler feed water, condensate.
• Sea water.
EXECUTION
• Other materials upon request.
Dimensions: DN 15 – 150
Additional information
Materials
| No. | DETAILS | DIMENSIONS | MATERIALS |
|---|---|---|---|
| 1 | Body | bronze CC491K (RG5) | |
| 2 | Valve | DN 10-50 | Bronze CC493K (RG7) |
| 2 | Valve | DN 65-80 | bronze CC491K (RG5) |
| 3 | Spring | stainless steel 1.4571 (AISI316Ti) | |
| 4 | Garnish | Teflon/PTFE | |
| 5 | Lid | DN 10-32 | brass CW710R (SoMs59) |
| 5 | Lid | DN 40-80 | bronze CC491K (RG5) |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Construction length | EN 558, series 1 |
| Lid connection | threaded |
| Execution | straight |
| Joining | flanged |
| Operation | Self closing |
| T max. °C | 180 °C |
Dimensions
| DN | PN | Flanges/G | L | H | Weight (kg) |
|---|---|---|---|---|---|
| 10 | 16 | G 3/8" | 60 | 40 | 0.3 |
| 15 | 16 | G 1/2" | 65 | 40 | 0.1 |
| 20 | 16 | G 3/4" | 75 | 50 | 0.5 |
| 25 | 16 | G1" | 90 | 50 | 0.9 |
| 32 | 16 | G 1 1/4" | 105 | 60 | 1.3 |
| 40 | 16 | G 1 1/2" | 120 | 65 | 1.9 |
| 50 | 16 | G 2" | 145 | 75 | 3 |
| 65 | 16 | G 2 1/2" | 170 | 90 | 5.8 |
| 80 | 16 | G 3" | 200 | 100 | 7.3 |
Related products
Select options
This product has multiple variants. The options may be chosen on the product page

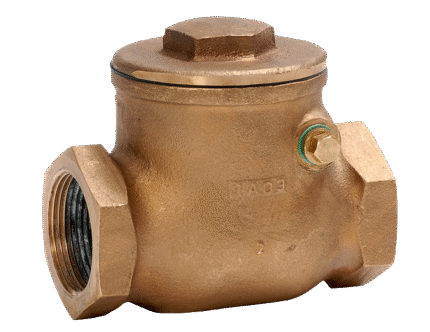

CHECK VALVE BRASS HORIZONTAL INSTALLATION DIN 3202 PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

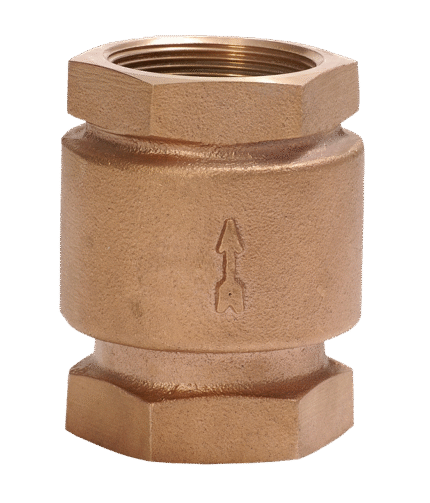

CHECK VALVE BRASS SPRING RETURN DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

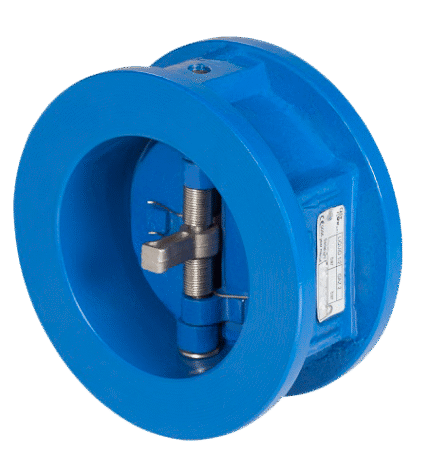

DUO CHECK VALVE CAST IRON SPRING RETURN DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

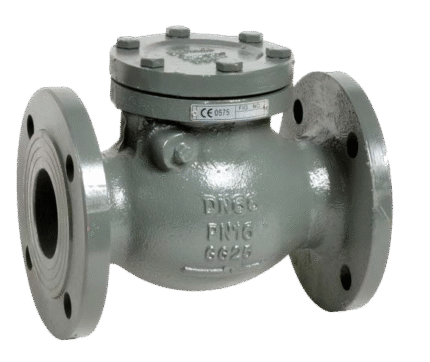

GLOBE CHECK VALVE CAST IRON DIN PN 16 model 362 EPDM / Metal
Select options
This product has multiple variants. The options may be chosen on the product page

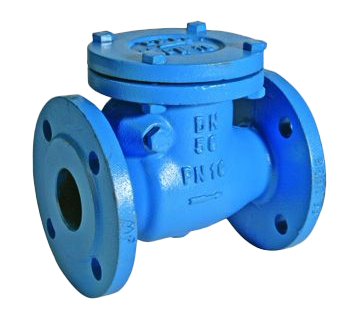

GLOBE CHECK VALVE STRAIGHT FLANGED DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page
MALLEABLE IRON CHECK VALVE DIN PN 16
Select options
This product has multiple variants. The options may be chosen on the product page

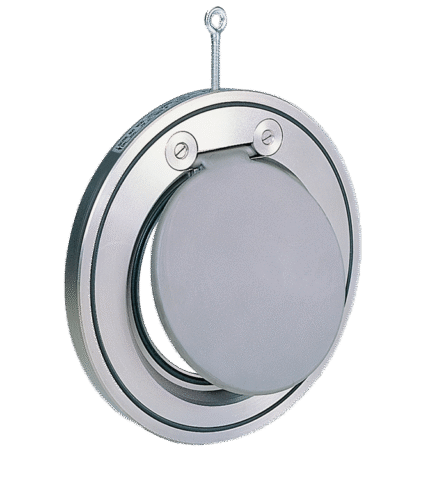

WAFER CHECK VALVE CARBON STEEL TYPE W409 DIN PN 16
