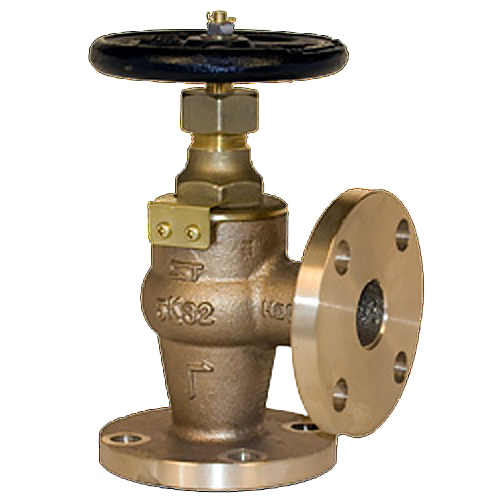

BRONZE ANGLE VALVE JIS F7302 5K
TECHNICAL DESCRIPTION
Angle valve with flange connection. Possible variations of the function depending on the design.
• shut-off valve
• regulating valve
• check valve
Valve seat sealing – metal to metal
Spindle type – pull-out
WORKING FLUID / MEDIUM
• Water, steam, fuels, lubricating and flammable hydraulic oils, oil, air, non-flammable hydraulic fluids, boiler feed water, condensate. For thermal oil, the use of bellows valves is recommended
• Sea water
OPTIONS
• Spring for check valve
Dimensions: DN 15 – 65
Additional Information
Materials
| 1 | Body / Lid | bronze CC491K (RG5) |
|---|---|---|
| 2 | Saddle | bronze CC491K (RG5) |
| 3 | Valve | bronze CC491K (RG5) |
| Spindle | brass | |
| Handwheel | gray cast iron (GG25) | |
| Spindle seal | graphite sealant |
Features
| SPECIFICATION | |
|---|---|
| Standard | JIS |
| Joining | JIS B2220 5K |
| Construction length | JIS B2002 |
| Lid connection | threaded |
| Execution | angular |
| Joining | flanged |
| Management | manually with flywheel |
| Drive | multi-turn |
| T max. °C at 5 Bar | 205 °C |
| T max. °C at 7 Bar | 120 °C |
Dimensions
| DN | PN | Flanges/PN | L1 | D | C | nx Øh | H (open) | D2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 5K | 5K | 55 | 80 | 60 | 4x12 | 120 | 80 | 1.98 |
| 20 | 5K | 5K | 60 | 85 | 65 | 4x12 | 130 | 100 | 2.73 |
| 25 | 5K | 5K | 65 | 95 | 75 | 4x12 | 145 | 125 | 3.44 |
| 32 | 5K | 5K | 80 | 115 | 90 | 4x15 | 150 | 125 | 4.77 |
| 40 | 5K | 5K | 85 | 120 | 95 | 4x15 | 165 | 140 | 5.99 |
| 50 | 5K | 5K | 100 | 130 | 105 | 4x15 | - | 140 | 10.1 |
| 65 | 5K | 5K | 115 | 155 | 130 | 4x15 | - | 160 | 15.6 |
