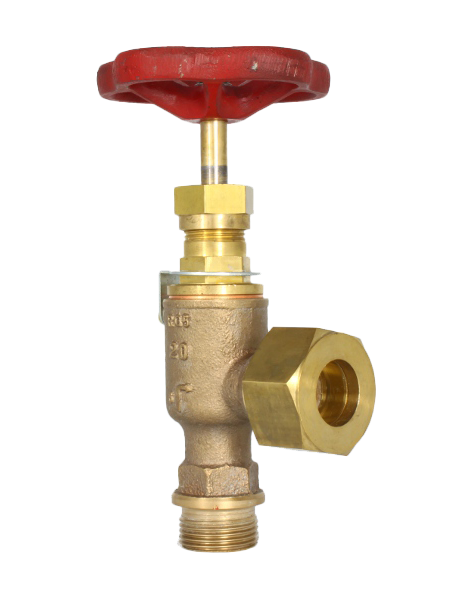

BRONZE ANGLE CHECK VALVE WITH WELDED RING DRS-RG-N; S / DIN86512 PN 40
BRONZE ANGLE CHECK VALVE WITH WELDED RING DRS-RG-N; S / DIN86512 PN 40

BRONZE ANGLE CHECK VALVE WITH CONNECTING RING DRS-RG-N; S / DIN86502 PN 40

TECHNICAL DESCRIPTION

They are used to transport water – hot and cold, oils, steam, neutral gases, seawater, fuels, air, etc.

IMPLEMENTATION AND OPTIONS

• according to DIN 86501-DRS-RG-S
• body with internal parts made of stainless steel or bronze
• other materials on request

Dimensions: DN 6 – 32


Download Product PDF
Изпратете запитване (Send inquiry)
Additional Information



Materials

No. DETAILS MATERIALS
1 Body bronze RG5
2 Interior details brass Ms58
3 Seat seal metal / metal

Features

SPECIFICATION
Standard DIN 86502
Valve (type) DRS-Rg-N; S
Valve (type) reversible
Lid connection threaded / secured against unscrewing
Execution angular
Login thread
Exodus snap ring
Management manually with wheel
Drive multi-turn
Temp. range [°C] -10°C ÷ 225°C



Dimensions
DN Ød1 G M L L1 L2 H Ød SW SW1 kg
6 10 3/8 M18x1.5 39 30 12 105 60 17 22 0.4
8 12 1/2 M20x1.5 41 32 14 105 60 19 24 0.4
10 14 1/2 M22x1.5 44 35 14 105 60 19 30 0.4
12 16 3/4 M24x1.5 48 38 16 115 80 24 30 0.7
16 20 3/4 M30x2 51 40 16 115 80 24 36 0.8
20 25 1 M36x2 60 48 18 135 100 30 46 1.3
25 30 11/4 M42x2 63 50 20 130 100 41 50 1.4
32 38 11/2 M52x2 69 55 22 150 120 - - 2.3
