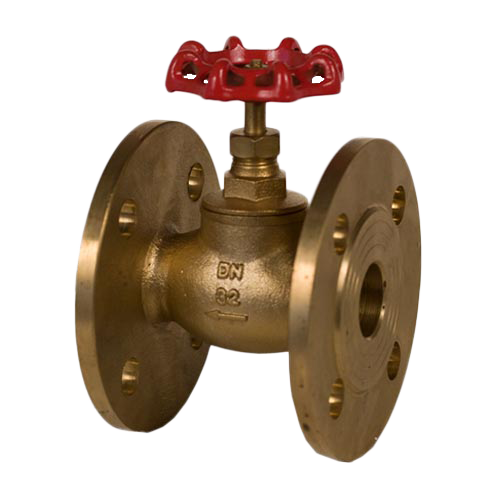

BRONZE VALVE STRAIGHT DIN 3202 F32 PN 16
BRONZE VALVE STRAIGHT DIN 3202 F32 PN 16
Back to products

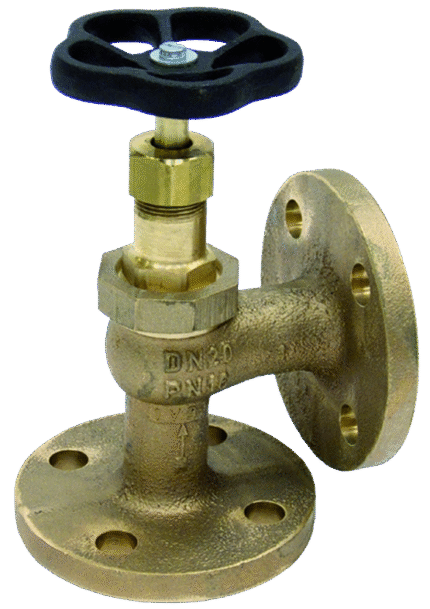

BRASS ANGLE VALVE WITH THREADED COVER DIN 3202 F32, PN 16
BRASS ANGLE VALVE WITH THREADED COVER DIN 3202 F32, PN 16

BRASS VALVE WITH THREADED COVER DIN 3202 F1, PN 16

TECHNICAL DESCRIPTION

Straight valve with flange connection. Possible variations of the function depending on the design.

• shut-off valve
• check valve.

Extraction spindle, threaded cover (secured against self-unscrewing), sealing method – metal to metal. For warm sea water it is recommended to use a spindle made of bronze (zinc-free), CuSn6.

WORKING FLUID / MEDIUM

Water, steam, fuels, lubricating and flammable hydraulic oils, boiler feed water, sea water.

EXECUTION

• Spindle material: CuSn6
• Plug for operation as a check valve

Dimensions:DN 15 – 100

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

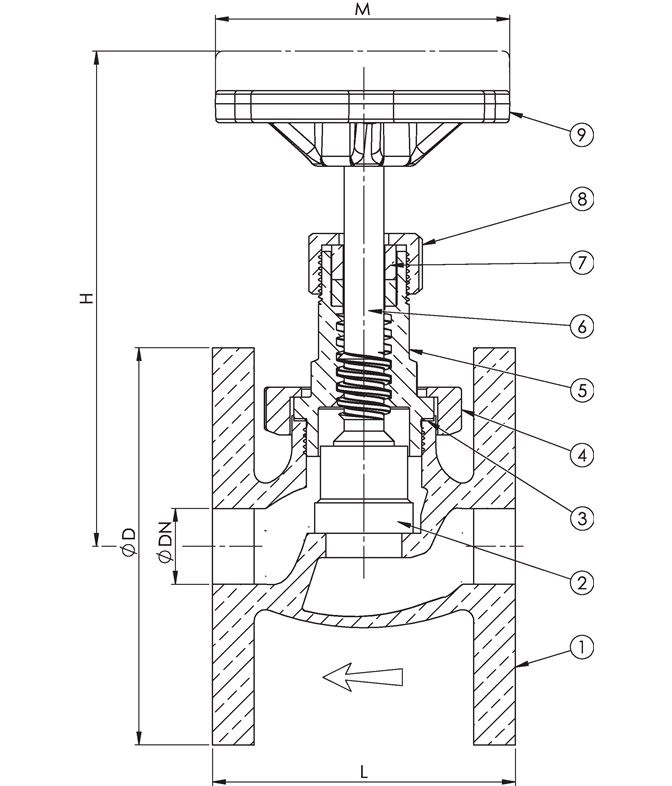

Materials

No. DETAILS MATERIALS
1 Body brass CW614N (Ms58)
2 Valve brass CW614N (Ms58)
3 Garnish Teflon/PTFE
4 Lock nut brass CW614N (Ms58)
5 Lid brass CW614N (Ms58)
6 Spindle brass CW710R (SoMs59)
7 Packing gland Teflon/PTFE
8 Packing nut brass CW614N (Ms58)
9 Handwheel gray cast iron EN-JL1040 (GG25)

Features

SPECIFICATION
Standard DIN 3202 F1
Lid connection threaded, secured
Execution straight
Joining flanged
Management manually with wheel
Drive multi-turn
T max. °C temperatures up to 180°C
steam up to 120°C
Dimensions
DN PN Flanges/PN L D ØP* H M Weight (kg)
10 16 PN 16 70 90 60 95 60 1.4
15 16 PN 16 70 95 65 95 60 1.8
20 16 PN 16 80 105 75 110 80 2.1
25 16 PN 16 90 115 85 115 80 2.6
32 16 PN 16 105 140 100 135 90 4.2
40 16 PN 16 120 150 110 145 100 5.2
50 16 PN 16 140 165 125 165 120 7.5
65 16 PN 16 180 185 145 230 160 11
80 16 PN 16 200 200 160 250 200 15
100 16 PN 16 230 220 180 260 200 21
Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing.

Related products

Select options This product has multiple variants. The options may be chosen on the product page

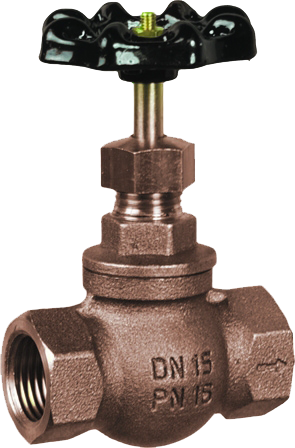

BRONZE THREADED STRAIGHT VALVE DIN 3202 F1, PN 16

Select options This product has multiple variants. The options may be chosen on the product page

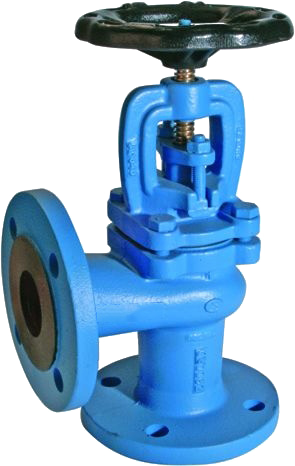

CAST IRON ANGLE VALVE DIN 3202 F32, PN 10

Select options This product has multiple variants. The options may be chosen on the product page

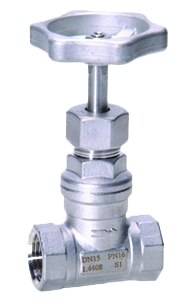

STAINLESS STEEL THREADED STRAIGHT VALVE DIN, PN 25

Select options This product has multiple variants. The options may be chosen on the product page

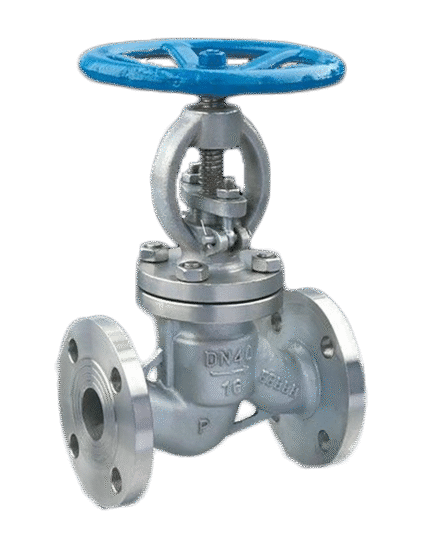

STAINLESS STEEL VALVE STRAIGHT DIN 3202 F1, PN 16

Select options This product has multiple variants. The options may be chosen on the product page

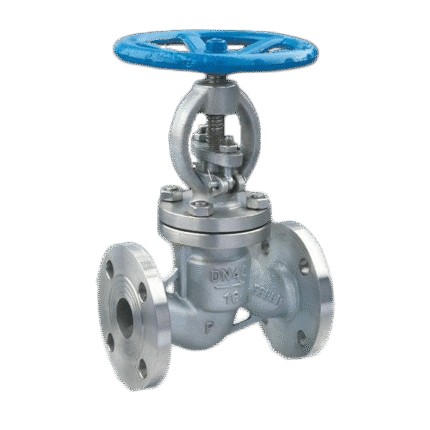

STAINLESS STEEL VALVE STRAIGHT DIN 3202 F1, PN 40

Select options This product has multiple variants. The options may be chosen on the product page

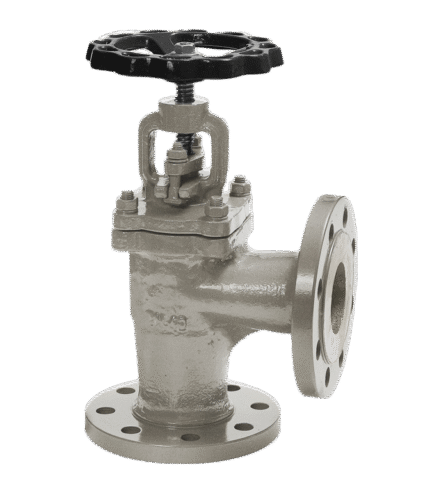

STEEL ANGLE VALVE DIN 3202 F32, PN 6

Select options This product has multiple variants. The options may be chosen on the product page

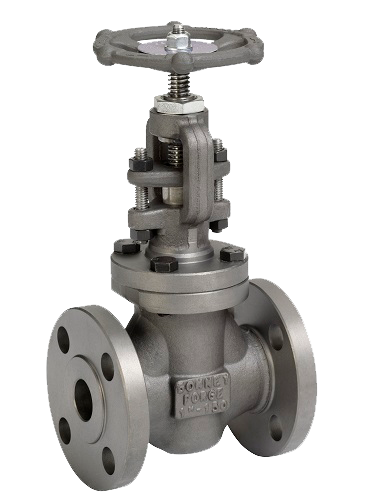

STEEL FORGED VALVE ON FLANGES ANSI #300
