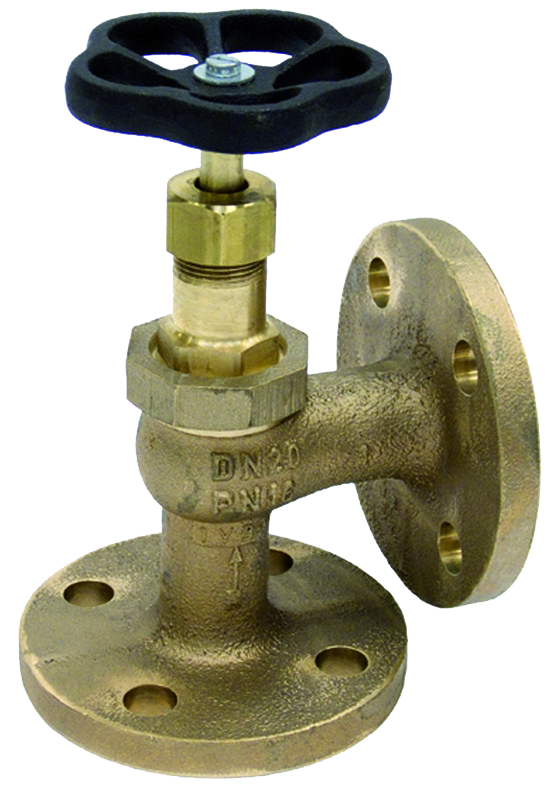

BRASS ANGLE VALVE WITH THREADED COVER DIN 3202 F32, PN 16
TECHNICAL DESCRIPTION
Angle valve with flange connection. Possible variations of the function depending on the design.
• shut-off valve
• check valve.
Extraction spindle, threaded cover (secured against self-unscrewing), sealing method – metal to metal. For warm sea water it is recommended to use a spindle made of bronze (zinc-free), CuSn6.
WORKING FLUID / MEDIUM
Water, steam, fuels, lubricating and flammable hydraulic oils, boiler feed water, sea water.
EXECUTION
• Spindle material: CuSn6
• Valve for operation as a check valve
Dimensions:DN 15 – 80
Additional information
Materials

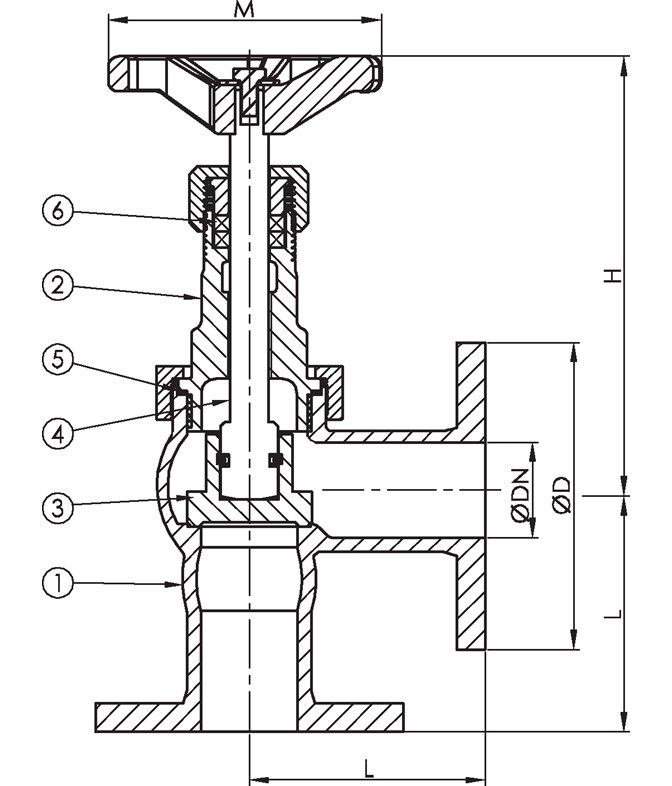

| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass CW614N (Ms58) |
| 2 | Lid | brass CW614N (Ms58) |
| 3 | Valve | brass CW614N (Ms58) |
| 4 | Spindle | brass CW710R (SoMs59) |
| 5 | Garnish | Teflon/PTFE |
| 6 | Packing gland | Teflon/PTFE |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN 3202 F1 |
| Lid connection | threaded, secured |
| Execution | angular |
| Joining | flanged |
| Management | manually with wheel |
| Drive | multi-turn |
| T max. °C | temperatures up to 180°C |
| steam up to 120°C | |
Dimensions
| DN | PN | Flanges/PN | L | D | ØP* | H | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 10 | 16 | PN 16 | 65 | 90 | 60 | 86 | 60 | 1.4 |
| 15 | 16 | PN 16 | 65 | 95 | 65 | 86 | 60 | 1.8 |
| 20 | 16 | PN 16 | 70 | 105 | 75 | 100 | 80 | 2.1 |
| 25 | 16 | PN 16 | 75 | 115 | 85 | 105 | 80 | 2.6 |
| 32 | 16 | PN 16 | 90 | 140 | 100 | 120 | 90 | 4.2 |
| 40 | 16 | PN 16 | 100 | 150 | 110 | 135 | 100 | 5.2 |
| 50 | 16 | PN 16 | 105 | 165 | 125 | 150 | 120 | 7.5 |
| 65 | 16 | PN 16 | 115 | 185 | 145 | 210 | 160 | 11 |
| 80 | 16 | PN 16 | 125 | 200 | 160 | 230 | 200 | 15 |
| Note: The dimensions in column ØP should be considered as the diameters of the bolt circle, as the latter are not indicated in the drawing. | ||||||||
