BOILER LEVEL INDICATOR GAUGE, REFLECTIVE
TECHNICAL DESCRIPTION

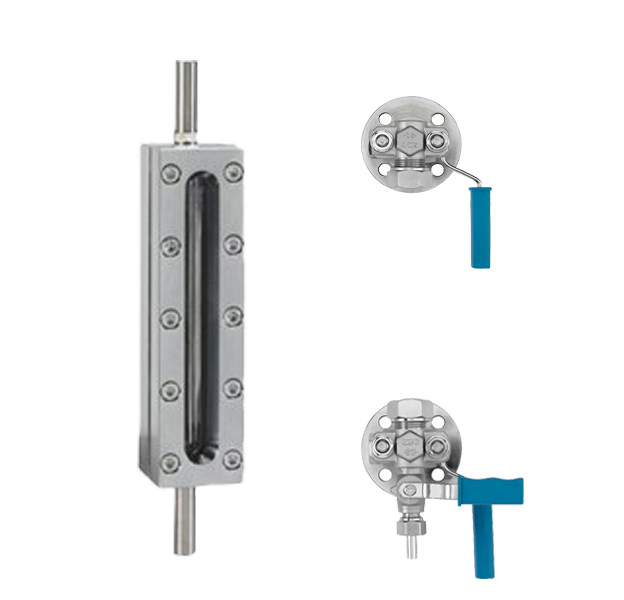

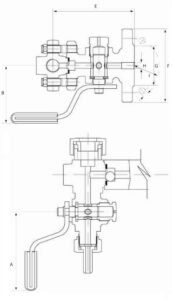

Indicator level gauge with reflective glass. Suitable for steam and water installations, as well as for use as equipment in steam boilers. Used in combination with two valves at the top and bottom end, to equalise fluid level in connected vessels.
ADDITIONAL FEATURES
• Extension of the construction length by adding additional bodies
• The structure is made entirely of stainless steel
EXECUTION
According to the size chart.
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body of the crane | steel 1.0619 |
| 2 | Sealant | graphite |
| 3 | Column material | 1.0619+N |
| 4 | Glass | borosilicate |
| 5 | Pipe | steel 1.0619 |
| 6 | Bolts | steel 1.0619 |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| P max. 22 barg | T max. 216 °C |
Dimensions
| Size | Construction length (mm) | Pipe diameter (mm) | Length of mirror part (mm) | Visible glass (mm) | Total glass length (mm) | Glass width (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1 | 235 | 16 | 128 | 93 | 115 | 34 | 2.4 |
| 2 | 260 | 16 | 153 | 118 | 140 | 34 | 2.8 |
| 3 | 285 | 16 | 178 | 143 | 165 | 34 | 3.3 |
| 4 | 310 | 16 | 203 | 168 | 190 | 34 | 3.8 |
| 5 | 340 | 16 | 233 | 198 | 220 | 34 | 4.3 |
| 6 | 370 | 16 | 263 | 228 | 250 | 34 | 4.9 |
| 7 | 400 | 16 | 293 | 258 | 280 | 34 | 5.4 |
| 8 | 440 | 16 | 333 | 298 | 320 | 34 | 6.1 |
| 9 | 460 | 16 | 353 | 318 | 340 | 34 | 6.6 |
