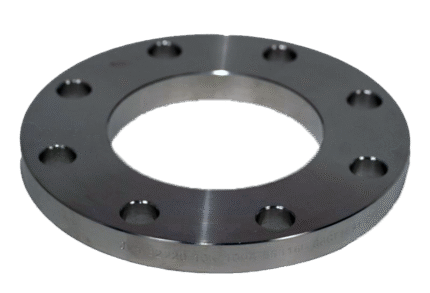

PLATE FLANGE JIS B2220 FLAT 10K
PLATE FLANGE JIS B2220 FLAT 10K

BLIND FLANGE JIS B2220 BLIND 5K

Dimensions:DN 15 – 1000

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Flange steel S400
other steels - on request
stainless steels - upon request



Features

SPECIFICATION
Standard JIS B2220
Pressure 5K

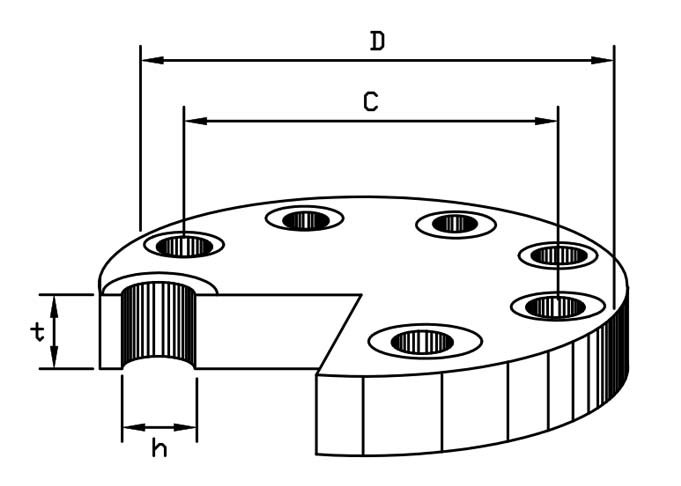

Dimensions
flange dimensions
DN d D C n h t kg
10 17.8 75 55 4 12 9 0.3
15 22.2 80 60 4 12 9 0.4
20 27.7 85 65 4 12 10 0.5
25 34.5 95 75 4 12 10 0.6
32 43.2 115 90 4 15 12 0.9
40 49.1 120 95 4 15 12 1
50 61.1 130 105 4 15 14 1.4
65 77.1 155 130 4 15 14 2
80 90 180 145 4 19 14 2.7
90 102.6 190 155 4 19 14 3
100 115.4 200 165 8 19 16 3.7
125 141.2 235 200 8 19 16 5.2
150 166.6 265 230 8 19 18 7.5
175 192.1 300 260 8 23 18 9.5
200 218 320 280 8 23 20 12.2
250 269.5 385 345 12 23 22 19.3
300 321 430 390 12 23 22 24.3
350 358.1 480 435 12 25 24 33.2
400 409 540 495 16 25 24 41.9
450 460 605 555 16 25 24 53
500 511 655 605 20 25 24 61.9
550 562 720 665 20 27 26 81.2
600 613 770 715 20 27 26 93.2
650 664 825 770 24 27 26 106.9
700 715 875 820 24 27 26 120.6
750 766 945 880 24 33 28 150.5
800 817 995 930 24 33 28 167.4
900 919 1095 1030 24 33 30 218.1
1000 1021 1195 1130 28 33 32 277.3
