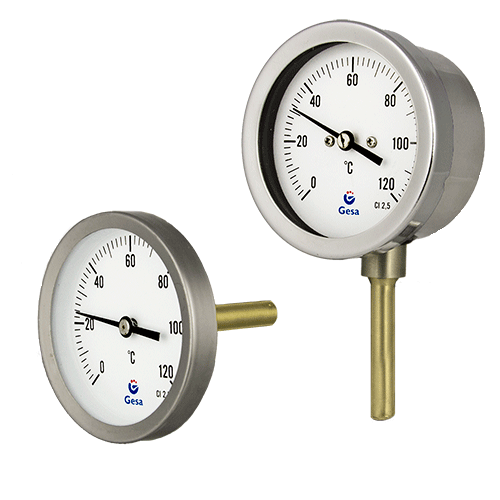

BIMETALLIC THERMOMETERS – RADIAL AND AXIAL
TECHNICAL DESCRIPTION
It is used to measure the temperature of various gases and fluids in heating, air conditioning and other heating or cooling systems.
EXECUTION
• straight
• angular
Dimensions: G1/2″
Additional Information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | CrNi (stainless steel) / steel |
| 2 | Submerged details | CrNi (stainless steel) / steel |
| 3 | Nut | CrNi (stainless steel) / brass |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Joining | 1/2" |
Dimensions
| TEMPERATURE RANGE °C | |||
|---|---|---|---|
| -20 ÷ +50 | 0 ÷ +50 | 0 ÷ +100 | 0 ÷ +120 |
| 0 ÷ +150 | 0 ÷ +200 | 0 ÷ +250 | 0 ÷ +300 |
| DIMENSIONS (mm) | |
|---|---|
| D | 60; 80; 100; 160 |
| H | 14 - 19 |
| L | 0 - 1000 |
| d | 10; 12 |
| h | 20 |
