BALL VALVE STAINLESS THREADED 2-PIECE • DIN PN 63

TECHNICAL DESCRIPTION

Ball valves are mainly used as shut-off elements in fluid transfer systems where high permeability is required.

• Operated by turning 90°.
• Full flow.
• Body in two parts connected by a threaded connection.
• Spindle – secured against knocking out.
• Threaded connection – NPT

WORKING FLUID / MEDIUM

• Water, steam, corrosive fluids, fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids.
• Boiler feed water, condensate.
• Sea water.

EXECUTION

• Various materials on request.

OPTIONS

• Discharge opening of the sphere

Dimensions:  1/4″ – 2″

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

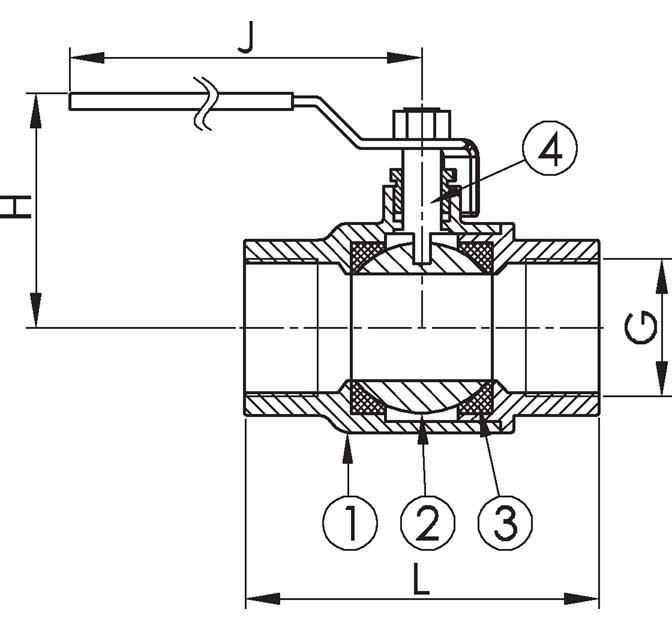

Materials

No. DETAILS MATERIALS
1 Body stainless steel 1.4408 (AISI316)
2 Sphere stainless steel 1.4408 (AISI316)
3 Saddle Teflon/PTFE
4 Spindle stainless steel 1.4408 (AISI316)

Features

SPECIFICATION
Standard DIN
Thread standard ISO 228-1. BSPP
Construction length EN 558, series 1
Execution straight
Joining threaded
Management with handle
Drive sectoral
T max. °C 170 °C



Dimensions
DN PN Thread/G (NPT) L H J Weight (kg)
8 63 G 1/4" 55.3 57 106 0.3
10 63 G 3/8" 55.3 57 106 0.3
15 63 G 1/2" 64.7 60 106 0.3
20 63 G 3/4" 73.4 68 124 0.5
25 63 G1" 84.8 77 153 0.8
32 63 G 1 1/4" 99.5 82 153 1.2
40 63 G 1 1/2" 112.7 98 194 1.8
50 63 G 2" 129 105 194 2.8
