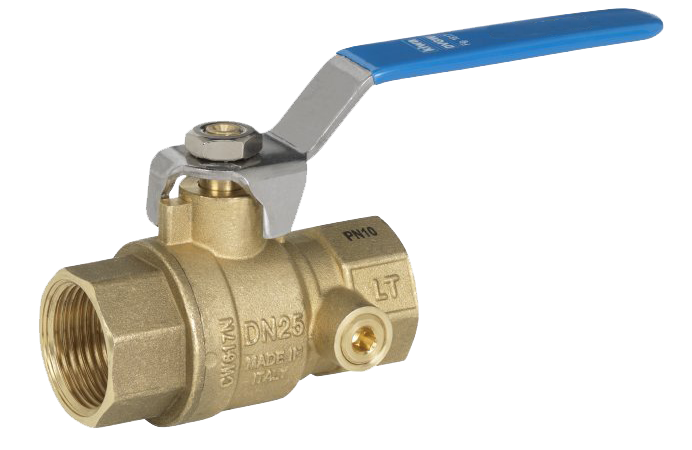

BALL VALVE, BRASS THREADED, 2-PIECE WITH DRAIN • DIN PN 16
TECHNICAL DESCRIPTION
Brass ball valve, full bore, floating ball and threaded connection, female / female BSP thread, permissible pressure PN16, with drain. Used in drinking water systems and applications up to 16 bar and 25°C.
• Operated by turning 90°.
• Full flow.
• Two-piece body.
• Connection – BSP thread
WORKING FLUID / MEDIUM
• Potable water systems and installations.
• Fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids
• Boiler feed water
• Sea water
Dimensions: G 1/2″ – 1 1/2
Additional information
Materials
| No. | DETAILS | MATERIALS |
|---|---|---|
| 1 | Body | brass CW617N |
| 2 | Sphere | brass CW617N + Chrome plated |
| 3 | Saddle | Teflon/PTFE |
| 4 | Spindle | brass CW617N |
| 5 | Spindle seal | O-ring/NBR rubber |
Features
| SPECIFICATION | |
|---|---|
| Standard | DIN |
| Joining Standard | ISO 228-1. BSPP |
| Construction length | Factory Standard |
| Execution | straight |
| Joining | threaded |
| Management | with handle |
| Drive | sectoral |
| T max. °C | 90 °C |

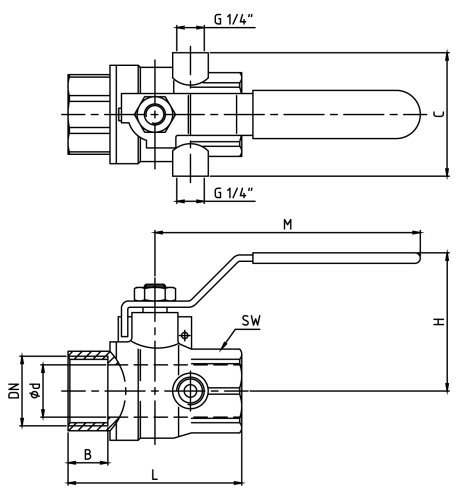

Dimensions
| DN | d | B | L | H | M | Kv | SW | Weight |
|---|---|---|---|---|---|---|---|---|
| ["] | [mm] | [kg] | ||||||
| ½" | 15 | 15 | 67 | 52 | 90 | 20 | 26 | 0.21 |
| ¾" | 20 | 16 | 76 | 55 | 90 | 45 | 31 | 0.35 |
| 1" | 25 | 19 | 88 | 64 | 125 | 60 | 38 | 0.54 |
| 1 ¼" | 32 | 21 | 93 | 69 | 125 | 100 | 48 | 0.84 |
| 1 ½" | 40 | 21 | 120 | 77 | 140 | 170 | 55 | 1 |
