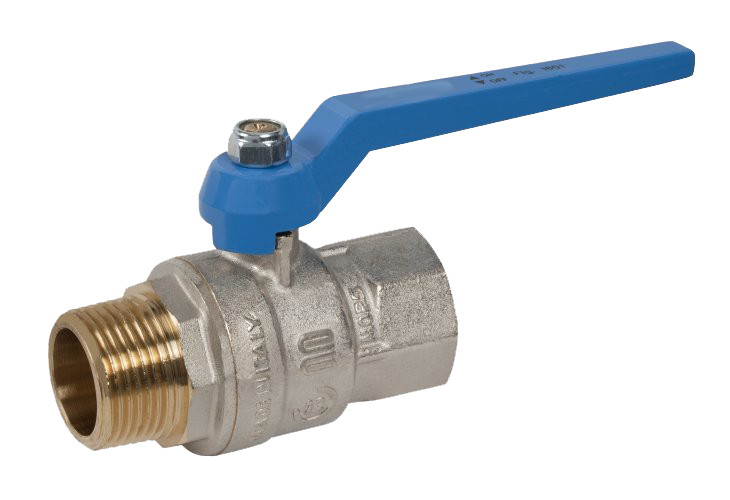

BALL VALVE BRASS THREADED 2-PIECE • DIN PN 16

TECHNICAL DESCRIPTION

Chrome-plated brass ball valve, full bore, with floating ball. Male/female thread connection according to EN-ISO 228-1

• Operated by turning 90°
• Full patency
• Body consisting of two parts
• Connection – threaded EN-ISO 228-1

WORKING FLUID / MEDIUM

• Drinking water
• Fuels, lubricating and hydraulic oils, petroleum, air, gas, non-flammable hydraulic fluids
• Boiler feed water
• Sea water

EXECUTION

• Various materials on request.

Dimensions: G 1/4″ – 2″

Download Product PDF
Изпратете запитване (Send inquiry)
Additional information

Materials

No. DETAILS MATERIALS
1 Body brass CW617N
2 Sphere brass CW617N + Chrome
3 Saddle Teflon/PTFE
4 Spindle brass CW617N
5 Spindle seal O-ring / HNBR



Features

SPECIFICATION
Standard DIN
Joining ISO 228-1. BSPP
Construction length EN 558, series 1
Execution straight
Joining threaded
Management with handle
Drive sectoral
T max. °C 170 °C

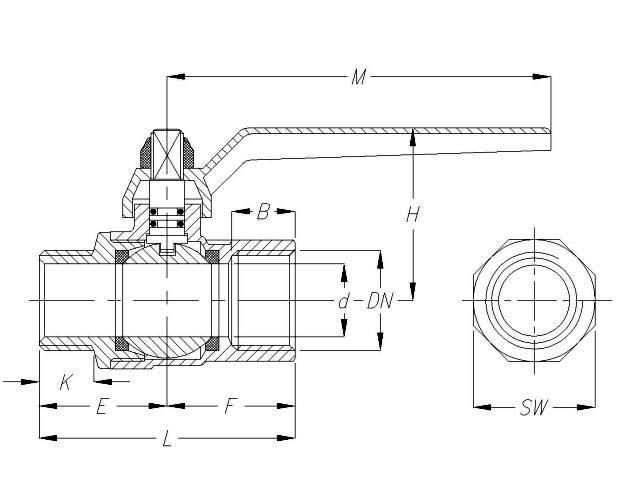

Dimensions
DN d B E F H K L M SW Weight PN
["] [mm] [kg]
1/4" 8 11 23.75 30.75 38.5 9.7 54.5 80 17 0.15 16
3/8" 10 11.4 24.75 31.25 38.5 10.1 56 80 21 0.14 16
1/2" 15 15 29.75 37.25 41 13.2 67 95 25 0.23 16
3/4" 20 16.3 35 42.5 50.5 14.5 77.5 115 31 0.37 16
1" 25 19.1 41.5 47.5 54.5 16.9 89 115 38 0.59 16
1 ¼" 32 21.4 49.25 53.75 66 19.1 103 130 47 0.91 16
1 ½" 40 21.4 54 59.5 72 19.1 113.5 150 54 1.18 16
2" 50 25.7 65 71.5 88.5 23.4 136.5 170 66 1.88 16
